Front hatch / locking system for BMW 4 Series G22 Coupé M440dX (2023)

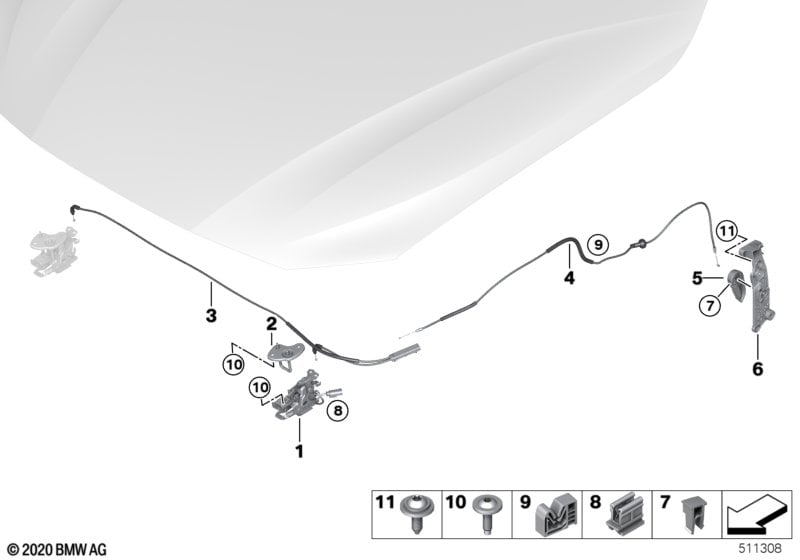

This Front hatch / locking system technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Lock, hood, active, left | FGS | 1 | 51237468349 | Shop at ECS Tuning | |||||
| 01 | Lock, hood, active, right | FGS | 1 | 51237468350 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 01 | Lock f hood, left | 1 | 51237468347 | Shop at ECS Tuning | ||||||
| 01 | Lock f hood, right | 1 | 51237468348 | Shop at ECS Tuning | ||||||
| 02 | Lock top part | 2 | 51237473707 | Shop at ECS Tuning | ||||||
| 03 | Bowden cable, front | 1 | 51237419390 | Shop at ECS Tuning | ||||||
| 04 | Bowden cable, rear | 1 | 51237419389 | Shop at ECS Tuning | ||||||
| 05 | Lever f engine hood mechanism | RL | 1 | 51237943205 | Shop at ECS Tuning | |||||
| 06 | Combination bracket | RL | 1 | 51237446433 | Shop at ECS Tuning | |||||
| 07 | Clip | SCHWARZ | 1 | 51237441559 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 08 | Plug-in connection bracket | 2 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 08 | Plug-in connection bracket | 1 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| 09 | Tubing support | 1 | 13717519038 | Shop at ECS Tuning | ||||||
| 10 | Oval-head screw with washer | ISA M6X21 | 8 | 07147263759 | Shop at ECS Tuning | |||||
| 11 | Sheet metal screw | 4,8X16 | 2 | 07119907237 | Shop at ECS Tuning | |||||
