Tailgate closing system for BMW 4 Series G22 Coupé 430iX (2024)

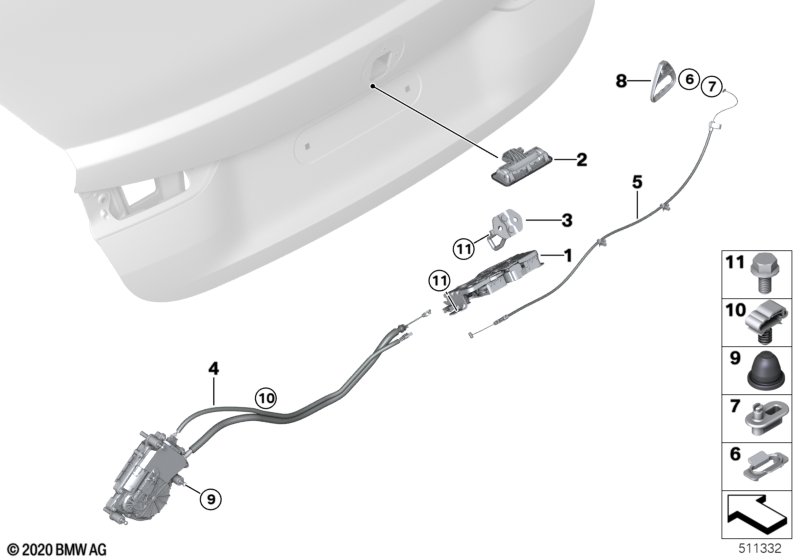

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 01 | Trunk lid lock | 1 | 51247441014 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 01 | Trunk lid lock | 1 | 51247383283 | Shop at ECS Tuning | ||||||
| 02 | Boot lid/tailgate pushbutton | 1 | 51248492533 | Shop at ECS Tuning | ||||||
| 03 | Striker trunk lid | 1 | 51247498893 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 04 | Trunk lid power lock drive | 1 | 51247383561 | Shop at ECS Tuning | ||||||
| 05 | Bowden cable, emergency unlocking | 1 | 51248492534 | Shop at ECS Tuning | ||||||
| 06 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 07 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 08 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 09 | Snap-lock coupling | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 10 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M8X20-U1-8.8 | 4 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
