Hood seals for BMW 3 Series G80 M3 M3 (2024)

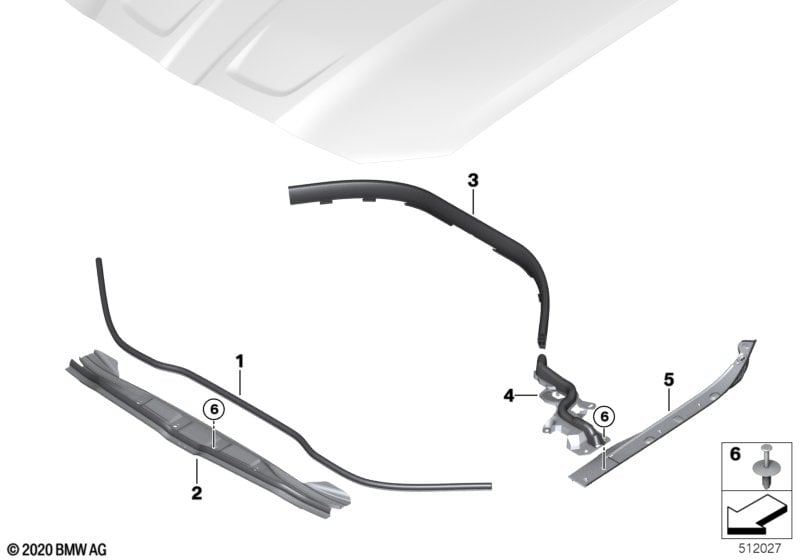

This Hood seals technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seal, engine bonnet, front | 1 | 51767419379 | Shop at ECS Tuning | ||||||
| 02 | Cover, front | 1 | 51648080626 | Shop at ECS Tuning | ||||||
| 03 | Seal, hood, rear | M | 1 | 51768075019 | Shop at ECS Tuning | |||||
| 04 | Gasket hood side left | 1 | 51768075015 | Shop at ECS Tuning | ||||||
| 04 | Gasket hood side right | 1 | 51768075016 | Shop at ECS Tuning | ||||||
| 05 | Sealing side panel, left | 1 | 51767486825 | Shop at ECS Tuning | ||||||
| 05 | Sealing side panel right | 1 | 51767486826 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | 16 | 51118174185 | $0.30 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G80 M3 M3 Hood seals?
- This technical diagram illustrates the Hood seals within the Bodywork group for the 3 Series G80 M3 M3 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Seal, engine bonnet, front (Part #51767419379).
- Which models use the hardware listed in this Hood seals?
- The hardware and components featured in the Hood seals are specific to the 3 Series G80 M3 M3 produced during 2024. These technical specifications ensure that parts like the Seal, engine bonnet, front (51767419379) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood seals assembly?
- Each item in the Hood seals corresponds to the numbered list below the illustration. For the 3 Series G80 M3 M3, you can identify the Seal, engine bonnet, front by locating its position on the schematic, which then links to the official BMW part number 51767419379 for the Bodywork section.
