Hood locking system for BMW MINI F55 LCI One (2024)

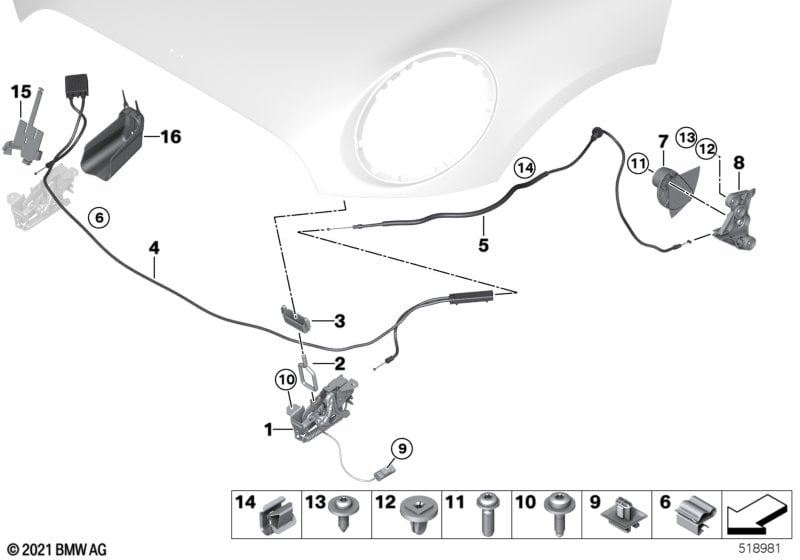

This Hood locking system technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock f hood, left | 1 | 51237300569 | Shop at ECS Tuning | ||||||
| 01 | Lock f hood, right | 1 | 51237300570 | Shop at ECS Tuning | ||||||
| 02 | Catch bracket | 2 | 51237247080 | Shop at ECS Tuning | ||||||
| 03 | Twist protection | 2 | 51237300579 | Shop at ECS Tuning | ||||||
| 04 | Bowden cable, hood, front | 1 | 51237495843 | Shop at ECS Tuning | ||||||
| 05 | Bowden cable, hood, rear | 1 | 51237430846 | Shop at ECS Tuning | ||||||
| 06 | Fixing clamp | A=4,0 - 4,5MM | 4 | 07147566122 | $0.58 | Shop at ECS Tuning | ||||
| 07 | Lever f engine hood mechanism | 1 | 51237307645 | Shop at ECS Tuning | ||||||
| 08 | Combination bracket, right | 1 | 51437298818 | Shop at ECS Tuning | ||||||
| 09 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 09 | Plug-in connection bracket | 2 | 61139285769 | Shop at ECS Tuning | ||||||
| 10 | Countersunk screw | M6X20-PCU2-10.9 | 6 | 07119908698 | Shop at ECS Tuning | |||||
| 11 | Screw | VS-TS5X16 SW | 1 | 51139908498 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | 7X7 MM | 4 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Screw | 5X16 | 3 | 07129907471 | Shop at ECS Tuning | |||||
| 14 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 15 | Cover lock front | 1 | 51237477555 | Shop at ECS Tuning | ||||||
| 16 | Cover lock rear | 1 | 51237477554 | Shop at ECS Tuning | ||||||
