Hood seals for BMW MINI F56 LCI JCW (2024)

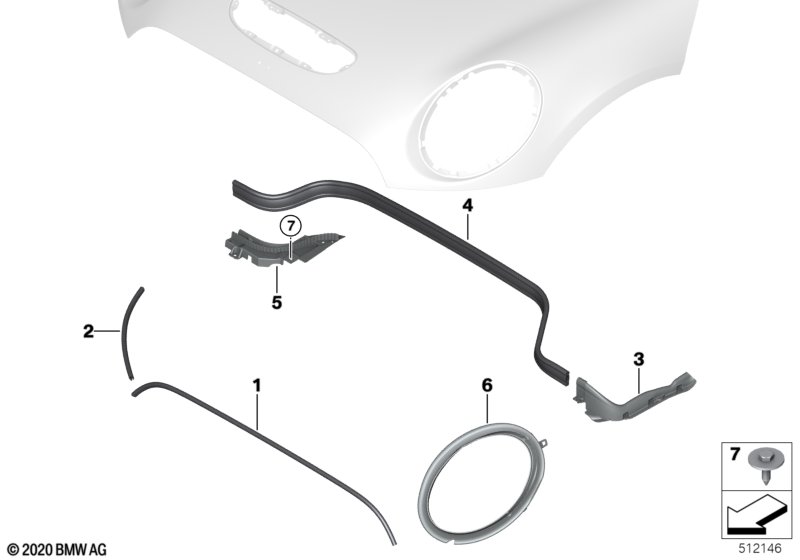

This Hood seals technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front engine hood sealing | 1 | 51767300559 | Shop at ECS Tuning | ||||||
| 02 | Lateral engine hood sealing | 2 | 41007297245 | Shop at ECS Tuning | ||||||
| 03 | Front left fender sealing | 1 | 51767300563 | Shop at ECS Tuning | ||||||
| 03 | Front right fender sealing | 1 | 51767300564 | Shop at ECS Tuning | ||||||
| 04 | Rear engine hood sealing | 1 | 51767300560 | Shop at ECS Tuning | ||||||
| 05 | Mount for seal, hood, left | 1 | 51767300561 | Shop at ECS Tuning | ||||||
| 05 | Mount for seal, hood, right | 1 | 51767300562 | Shop at ECS Tuning | ||||||
| 06 | Gasket, headlight, left | 1 | 51767391409 | Shop at ECS Tuning | ||||||
| 06 | Gasket, headlight, right | 1 | 51767391410 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt | TS5X20 SW8 D=22 | 1 | 07149213164 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI JCW Hood seals?
- This technical diagram illustrates the Hood seals within the Bodywork group for the MINI F56 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Front engine hood sealing (Part #51767300559).
- Which models use the hardware listed in this Hood seals?
- The hardware and components featured in the Hood seals are specific to the MINI F56 LCI JCW produced during 2024. These technical specifications ensure that parts like the Front engine hood sealing (51767300559) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood seals assembly?
- Each item in the Hood seals corresponds to the numbered list below the illustration. For the MINI F56 LCI JCW, you can identify the Front engine hood sealing by locating its position on the schematic, which then links to the official BMW part number 51767300559 for the Bodywork section.
