Tailgate closing system for BMW MINI F56 LCI Cooper (2024)

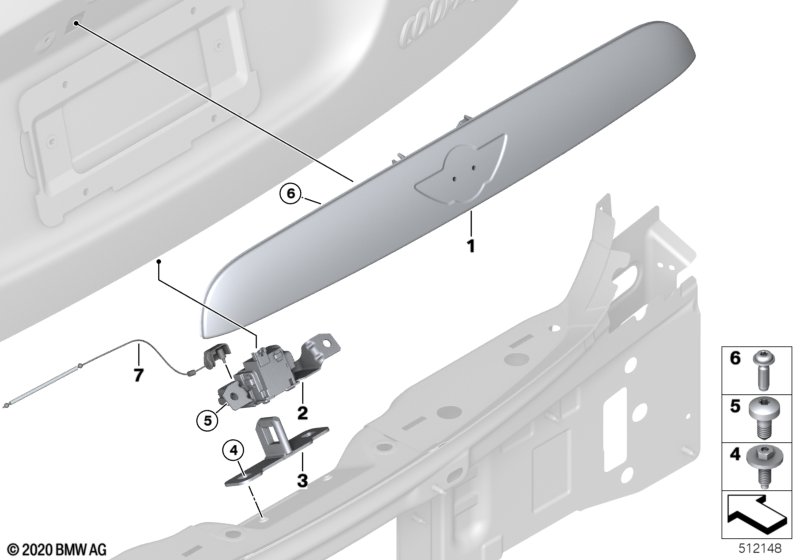

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Reversing camera and RESOLUTE EXTERIOR |
S3AGA=Yes S3L3A=No |
|||||||||
| 01 | Trunk lid grip with key button | SCHWARZ | 1 | 51137489756 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and RESOLUTE EXTERIOR |
S3AGA=Yes S3L3A=Yes |
|||||||||
| 01 | Trunk lid handle with button | BRONZE | 1 | 03/2022 | 51135A36CE6 | Shop at ECS Tuning | ||||
| For vehicles with Reversing camera and RESOLUTE EXTERIOR |
S3AGA=No S3L3A=Yes |
|||||||||
| 01 | Trunk lid handle with button | BRONZE | 1 | 03/2022 | 51135A36CE5 | Shop at ECS Tuning | ||||
| For vehicles with Reversing camera and RESOLUTE EXTERIOR |
S3AGA=No S3L3A=No |
|||||||||
| 01 | Trunk lid grip with key button | SCHWARZ | 1 | 51137489752 | Shop at ECS Tuning | |||||
| 02 | Trunk lid lock | 1 | 51247337576 | Shop at ECS Tuning | ||||||
| 03 | Striker trunk lid | 1 | 51249854222 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M8X17 | 2 | 07147219509 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Screw | 5 X 16 | 6 | 07129907505 | Shop at ECS Tuning | |||||
| 07 | Cover lock with pull rope | 1 | 51249878934 | Shop at ECS Tuning | ||||||
