Trunk lid for BMW MINI Cabrio F57 LCI JCW

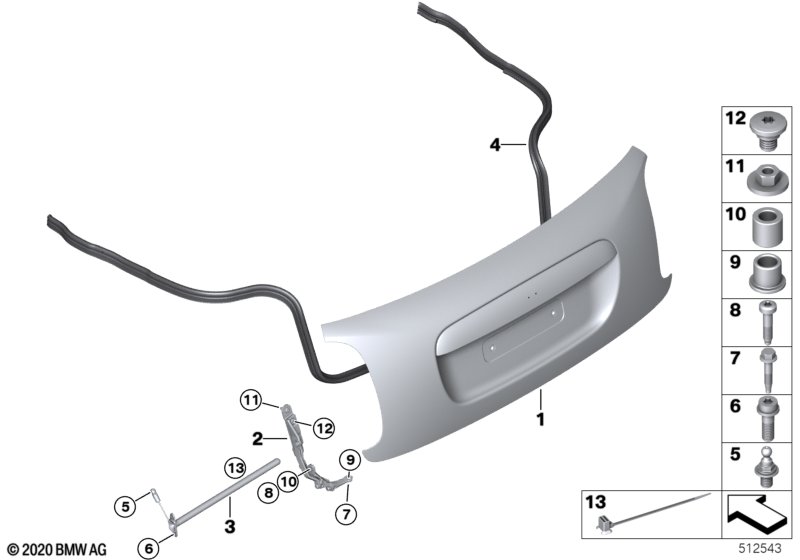

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007360368 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007360369 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007360370 | Shop at ECS Tuning | ||||||
| 03 | Retractor | 2 | 51247445200 | Shop at ECS Tuning | ||||||
| 04 | Trunk lid sealing | 1 | 51767360366 | Shop at ECS Tuning | ||||||
| 05 | Ball pin | M10 | 2 | 41007189292 | $3.02 | Shop at ECS Tuning | ||||
| 06 | ISA screw | M6X20-U1-8.8 | 4 | 07129907026 | Shop at ECS Tuning | |||||
| 07 | Screw | M6X30 | 2 | 07119908754 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M8X35 | 2 | 07119908733 | Shop at ECS Tuning | |||||
| 09 | Spacer | 2 | 41002758571 | Shop at ECS Tuning | ||||||
| 10 | Spacer | 2 | 41007414359 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | M8 | 2 | 02/2013 | 07146959644 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex nut with plate | M8 | 2 | 07149302543 | Shop at ECS Tuning | |||||
| 12 | Screw | 4 | 51242757957 | $0.59 | Shop at ECS Tuning | |||||
| 13 | Cable tie | 2 | 61138370478 | $0.35 | Shop at ECS Tuning |
