Tailgate closing system for BMW MINI Cabrio F57 LCI JCW (2024)

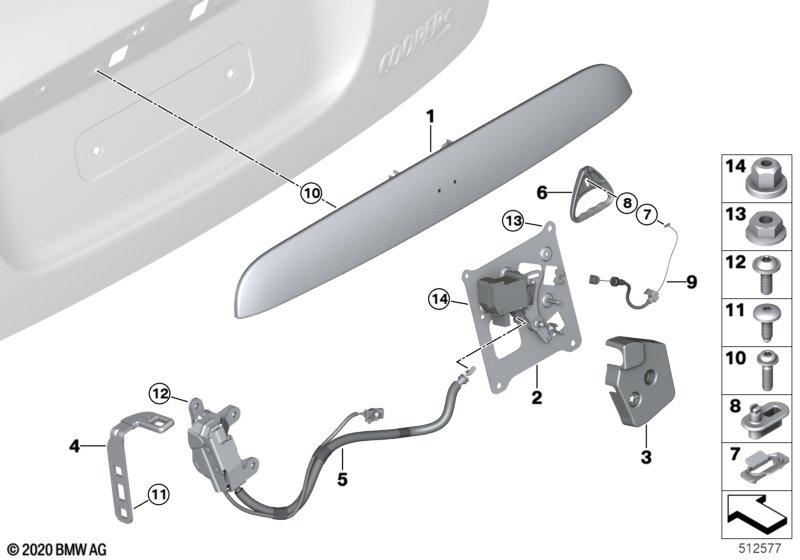

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Reversing camera |
S3AGA=Yes |
|||||||||
| 01 | Trunk lid grip with key button | SCHWARZ | 1 | 51137489756 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera |
S3AGA=No |
|||||||||
| 01 | Trunk lid grip with key button | SCHWARZ | 1 | 51137489752 | Shop at ECS Tuning | |||||
| 02 | Drive unit with servo actuator | 1 | 51242758541 | $43.54 | Shop at ECS Tuning | |||||
| 03 | Cover, trunk lid lock | 1 | 51247159295 | $1.97 | Shop at ECS Tuning | |||||
| 04 | Catch bracket left | 1 | 51247381519 | Shop at ECS Tuning | ||||||
| 04 | Catch bracket right | 1 | 51247381520 | Shop at ECS Tuning | ||||||
| 05 | Trunk lid lock, left | 1 | 51247195099 | $50.10 | Shop at ECS Tuning | |||||
| 05 | Trunk lid lock, right | 1 | 51247195100 | $50.10 | Shop at ECS Tuning | |||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 06 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 07 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 08 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 09 | Bowden cable, emergency unlocking | 1 | 51247120472 | $17.52 | Shop at ECS Tuning | |||||
| 10 | Screw | 5 X 16 | 6 | 07129907505 | Shop at ECS Tuning | |||||
| 11 | Combi oval-head machine screw | ISA M8X20 | 4 | 07147234925 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M6X16 8.8 | 6 | 51119907273 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M6-10-ZNS3 | 4 | 51249907504 | Shop at ECS Tuning | |||||
| 14 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
