Trunk lid/closing system for BMW 3 Series F30 328i (2013)

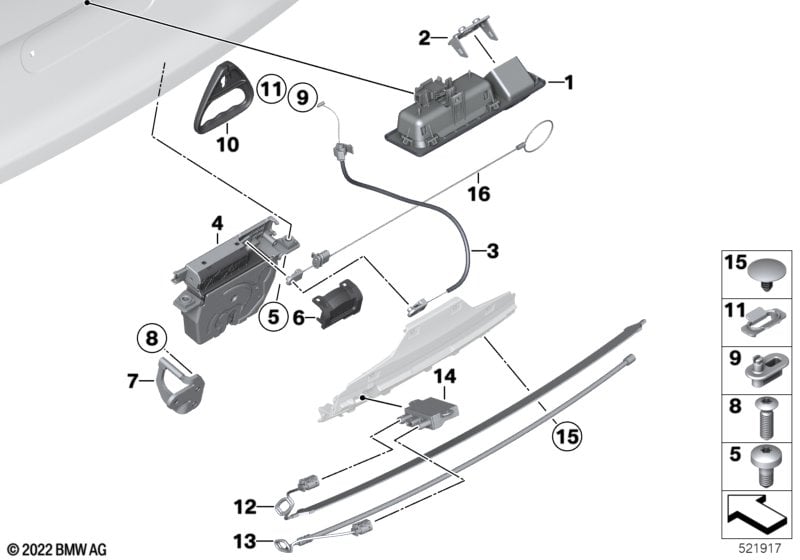

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boot lid/tailgate pushbutton | 1 | 51247463161 | Shop at ECS Tuning | ||||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Boot lid/tailgate pushbutton | ICAM | 1 | 51247463163 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy trim, camera system | SCHWARZ | 1 | 66535A50B79 | Shop at ECS Tuning | |||||
| -- | Cover for rearview camera | ICAM | 1 | 51247463164 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera |
S3AGA=Yes |
|||||||||
| 01 | Boot lid/tailgate pushbutton | 1 | 07/2017 | 51247368753 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 03 | Bowden cable, emergency unlocking | 1 | 51247238463 | Shop at ECS Tuning | ||||||
| 04 | Trunk lid lock | 1 | 51247191212 | Shop at ECS Tuning | ||||||
| 05 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Protection cap | 1 | 51247224692 | Shop at ECS Tuning | ||||||
| 07 | Striker trunk lid | 1 | 51247255634 | Shop at ECS Tuning | ||||||
| 08 | Torx-countersunk head screw | M6X10 | 3 | 07147177066 | Shop at ECS Tuning | |||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 09 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 10 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 11 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 12 | Sensor wire for Smart Opener, top | 1 | 61357391042 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 12 | Sensor wire for Smart Opener, top | 1 | 61357391042 | Shop at ECS Tuning | ||||||
| 13 | Sensor wire for Smart Opener, bottom | 1 | 61357391043 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 13 | Sensor wire for Smart Opener, bottom | 1 | 61357391043 | Shop at ECS Tuning | ||||||
| 14 | Control unit for Smart Opener | 1 | 61357391041 | ENDED | Shop at ECS Tuning | |||||
| 15 | Plug, black | D=5MM | 7 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 16 | Bowden cable | 1 | 51247249683 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 328i Trunk lid/closing system?
- This technical diagram illustrates the Trunk lid/closing system within the Bodywork group for the 3 Series F30 328i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Boot lid/tailgate pushbutton (Part #51247463161).
- Which models use the hardware listed in this Trunk lid/closing system?
- The hardware and components featured in the Trunk lid/closing system are specific to the 3 Series F30 328i produced during 2013. These technical specifications ensure that parts like the Boot lid/tailgate pushbutton (51247463161) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid/closing system assembly?
- Each item in the Trunk lid/closing system corresponds to the numbered list below the illustration. For the 3 Series F30 328i, you can identify the Boot lid/tailgate pushbutton by locating its position on the schematic, which then links to the official BMW part number 51247463161 for the Bodywork section.
