Engine hood/mounting parts for BMW 3 Series F30 LCI 320d (2016)

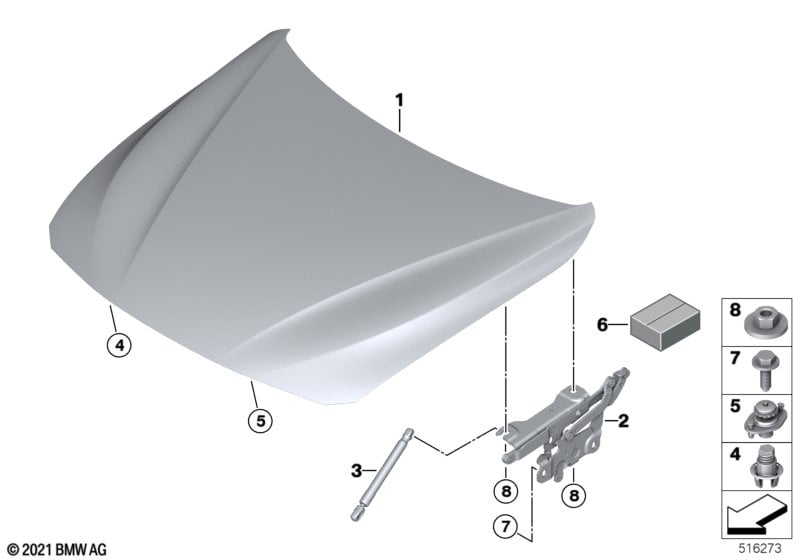

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41007290944 | Shop at ECS Tuning | ||||||
| Hood hinge Install in pairs only |
||||||||||
| 02 | Left engine hood hinge | 1 | 41617286343 | +core | Shop at ECS Tuning | |||||
| 02 | Right engine hood hinge | 1 | 41617286344 | +core | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 03 | Gas strut, hood | PASSIV | 2 | 51237239233 | +core | Shop at ECS Tuning | ||||
| 04 | Adjuster | 1 | 51767183752 | $3.95 | Shop at ECS Tuning | |||||
| 05 | Stop buffer | 2 | 51237291089 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M8 | 2 | 07/2013 | 07146959644 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex nut with plate | M8 | 2 | 07/2013 | 07149302543 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
