Trunk lid, mounting parts for BMW 4 Series G26 Gran Coupé 430iX (2024)

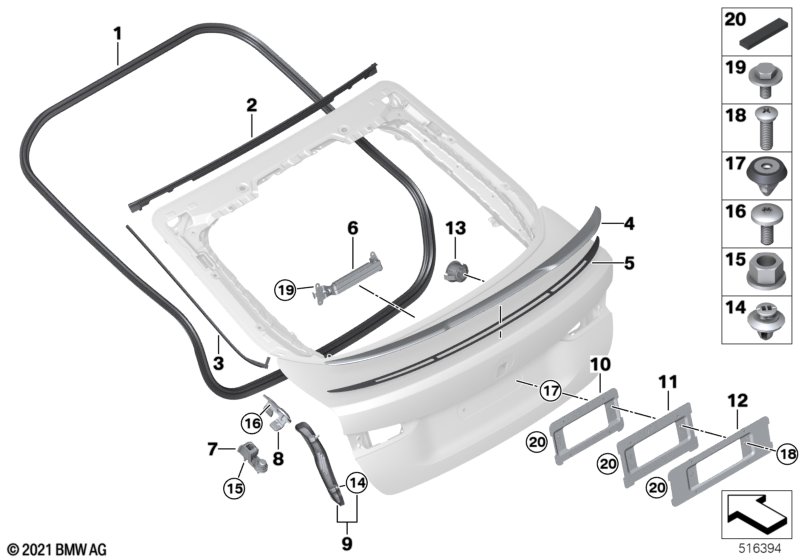

This Trunk lid, mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid gasket | 1 | 51765A35907 | Shop at ECS Tuning | ||||||
| 02 | Seal roof gap tailgate | 1 | 51767487560 | Shop at ECS Tuning | ||||||
| 03 | Gap seal rear window left | 1 | 51767487561 | Shop at ECS Tuning | ||||||
| 03 | Gap seal rear window right | 1 | 51767487562 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 04 | Rear spoiler | CFK | 1 | 51625A35A69 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon and M Rear spoiler |
S71CA=No S754A=Yes |
|||||||||
| 04 | Primed rear spoiler | 1 | 51625A12205 | Shop at ECS Tuning | ||||||
| For vehicles with M exterior pack carbon |
S71CA=Yes |
|||||||||
| 05 | Adhesive tape rear spoiler | CFK | 1 | 51625A35A70 | Shop at ECS Tuning | |||||
| For vehicles with M exterior pack carbon and M Rear spoiler |
S71CA=No S754A=Yes |
|||||||||
| 05 | Adhesive tape rear spoiler | 1 | 51625A12206 | Shop at ECS Tuning | ||||||
| 06 | Vibration absorber trunk lid | 1 | 51249478016 | Shop at ECS Tuning | ||||||
| 07 | Wedge, rear hatch, left | 1 | 51247441961 | Shop at ECS Tuning | ||||||
| 07 | Wedge, rear hatch, right | 1 | 51247441962 | Shop at ECS Tuning | ||||||
| 08 | Stop, trunk lid, left | 1 | 51247487573 | Shop at ECS Tuning | ||||||
| 08 | Stop, trunk lid, right | 1 | 51247487574 | Shop at ECS Tuning | ||||||
| 09 | Tail light finisher, trunk lid, left | 1 | 51138739613 | Shop at ECS Tuning | ||||||
| 09 | Tail light finisher, trunk lid, right | 1 | 51138739614 | Shop at ECS Tuning | ||||||
| 10 | License plate holder | US | 1 | 51135A45B43 | Shop at ECS Tuning | |||||
| 13 | Warning signal unit | 1 | 51627482572 | Shop at ECS Tuning | ||||||
| 14 | Clip with seal ring | 4 | 51137065607 | $0.74 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M12X1,5ZNNIV SI | 2 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | ISA M8X20 | 4 | 07147026396 | $1.09 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
| 18 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 19 | Hex bolt with washer | M6X14U2-ZNNIVSI | 4 | 07119905952 | $0.91 | Shop at ECS Tuning | ||||
| 20 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 430iX Trunk lid, mounting parts?
- This technical diagram illustrates the Trunk lid, mounting parts within the Bodywork group for the 4 Series G26 Gran Coupé 430iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid gasket (Part #51765A35907).
- Which models use the hardware listed in this Trunk lid, mounting parts?
- The hardware and components featured in the Trunk lid, mounting parts are specific to the 4 Series G26 Gran Coupé 430iX produced during 2024. These technical specifications ensure that parts like the Trunk lid gasket (51765A35907) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid, mounting parts assembly?
- Each item in the Trunk lid, mounting parts corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 430iX, you can identify the Trunk lid gasket by locating its position on the schematic, which then links to the official BMW part number 51765A35907 for the Bodywork section.
