Tailgate closing system for BMW 4 Series G26 Gran Coupé 430dX (2024)

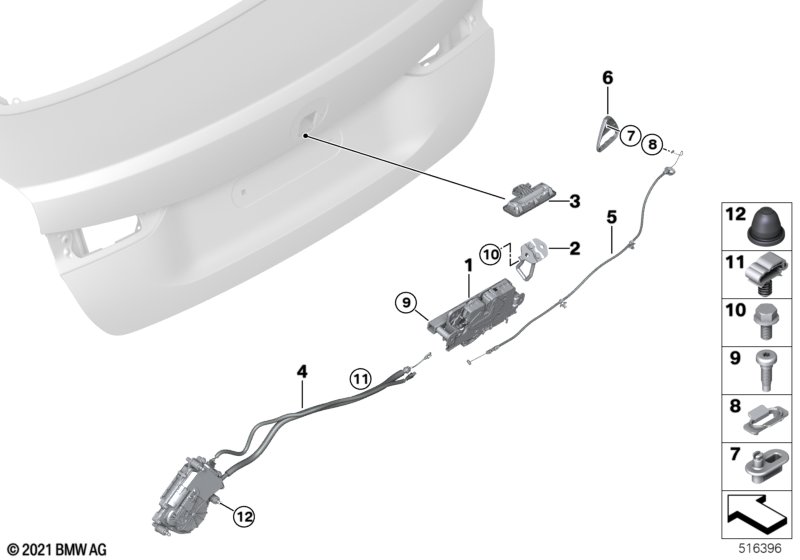

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | 1 | 51249463391 | Shop at ECS Tuning | ||||||
| 02 | Striker trunk lid | 1 | 51247487569 | Shop at ECS Tuning | ||||||
| 03 | Boot lid/tailgate pushbutton | 1 | 51248492533 | Shop at ECS Tuning | ||||||
| 04 | Soft-Close-Automatic | 1 | 51247430626 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 05 | Bowden cable, emergency unlocking | 1 | 51249451482 | Shop at ECS Tuning | ||||||
| 06 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 07 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 08 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M8X65 ZNS3 | 2 | 46717704755 | $6.90 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 12 | Snap-lock coupling | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 430dX Tailgate closing system?
- This technical diagram illustrates the Tailgate closing system within the Bodywork group for the 4 Series G26 Gran Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid lock (Part #51249463391).
- Which models use the hardware listed in this Tailgate closing system?
- The hardware and components featured in the Tailgate closing system are specific to the 4 Series G26 Gran Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Trunk lid lock (51249463391) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tailgate closing system assembly?
- Each item in the Tailgate closing system corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 430dX, you can identify the Trunk lid lock by locating its position on the schematic, which then links to the official BMW part number 51249463391 for the Bodywork section.
