Hood seals for BMW 2 Series U06 Active Tourer 230eX (2025)

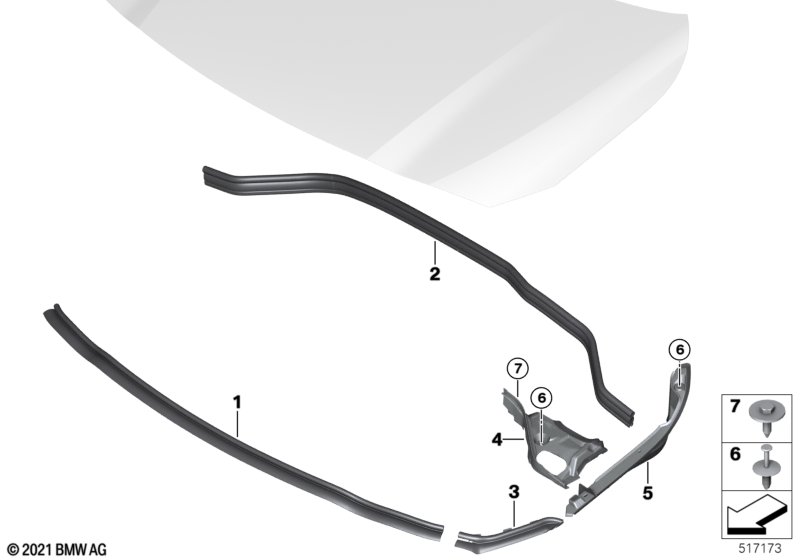

This Hood seals technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front engine hood sealing | 1 | 51768737140 | Shop at ECS Tuning | ||||||
| 02 | Rear engine hood sealing | 1 | 51768737151 | Shop at ECS Tuning | ||||||
| 03 | Gasket, headlight, left | 1 | 51768737159 | Shop at ECS Tuning | ||||||
| 03 | Gasket, headlight, right | 1 | 51768737160 | Shop at ECS Tuning | ||||||
| 04 | Mount seal side left | 1 | 51768737157 | Shop at ECS Tuning | ||||||
| 04 | Mount seal side right | 1 | 51768737158 | Shop at ECS Tuning | ||||||
| 05 | Seal, side panel, upper left | 1 | 51768737153 | Shop at ECS Tuning | ||||||
| 05 | Seal, side panel, upper right | 1 | 51768737154 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | 8 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | TS5X20SW10 D=22 | 2 | 07149481168 | Shop at ECS Tuning |
