Tailgate closing system for BMW 2 Series U06 Active Tourer 220d (2025)

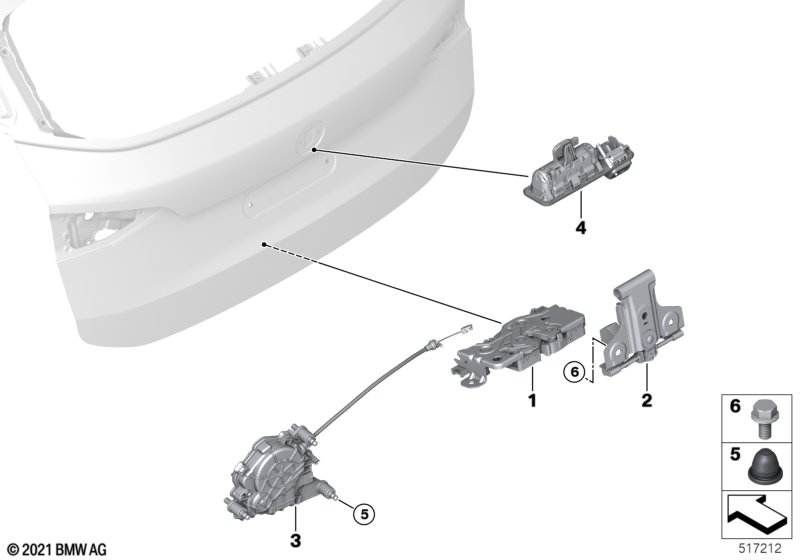

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | SCA | 1 | 51247464411 | Shop at ECS Tuning | |||||
| 02 | Striker trunk lid | 1 | 05/2024 | 51245B41D25 | Shop at ECS Tuning | |||||
| 03 | Soft-Close-Automatic | 1 | 51248494243 | Shop at ECS Tuning | ||||||
| 04 | Boot lid/tailgate pushbutton | ICAM | 1 | 51248494246 | Shop at ECS Tuning | |||||
| 05 | Snap-lock coupling | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X20-U1-8.8 | 5 | 07119904992 | $0.55 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 220d Tailgate closing system?
- This technical diagram illustrates the Tailgate closing system within the Bodywork group for the 2 Series U06 Active Tourer 220d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid lock (Part #51247464411).
- Which models use the hardware listed in this Tailgate closing system?
- The hardware and components featured in the Tailgate closing system are specific to the 2 Series U06 Active Tourer 220d produced during 2025. These technical specifications ensure that parts like the Trunk lid lock (51247464411) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tailgate closing system assembly?
- Each item in the Tailgate closing system corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 220d, you can identify the Trunk lid lock by locating its position on the schematic, which then links to the official BMW part number 51247464411 for the Bodywork section.
