Single components for trunk lid for BMW 7 Series G12 LCI 750LdX (2020)

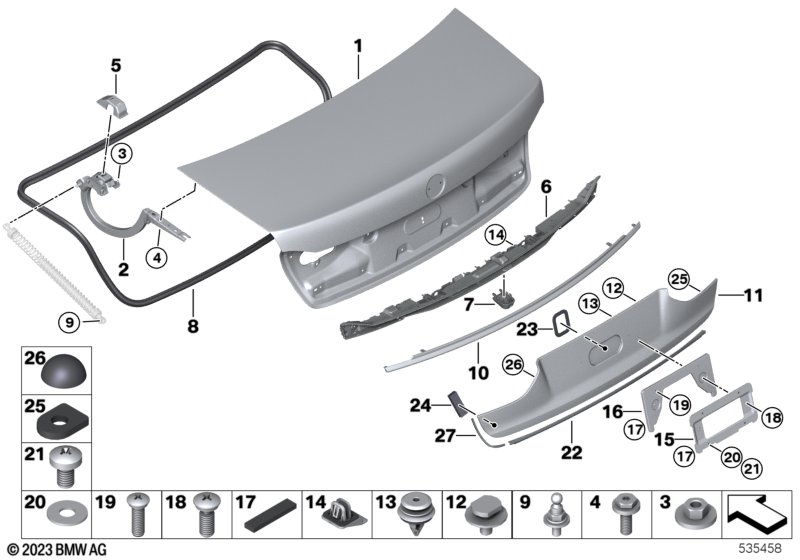

This Single components for trunk lid technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 750LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid, aluminum | 1 | 41009481034 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007413517 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007413518 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 8 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X24 | 4 | 07149112450 | Shop at ECS Tuning | |||||
| 05 | Cover, hinge | 2 | 51497385247 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=Yes S5DNA=Yes S5DVA=Yes |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=Yes S5DNA=Yes S5DVA=No |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=Yes S5DNA=No S5DVA=Yes |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=Yes S5DNA=No S5DVA=No |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=No S5DNA=Yes S5DVA=Yes |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=No S5DNA=Yes S5DVA=No |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=No S5DNA=No S5DVA=Yes |
|||||||||
| 06 | Trunk lid grip | RFK | 1 | 51137485267 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and Remote control parking |
S5DMA=No S5DNA=No S5DVA=No |
|||||||||
| 06 | Trunk lid grip | 1 | 51137483263 | Shop at ECS Tuning | ||||||
| 07 | Holder camera | 1 | 51137497179 | Shop at ECS Tuning | ||||||
| 08 | Trunk lid gasket | 1 | 51767357103 | Shop at ECS Tuning | ||||||
| 09 | Ball pin | 2 | 41637184053 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope and Country-specific equipment Russia 10323 Set consists of center trim strip, left and right trim strip for tail light. |
S7M9A=No S8LRA=Yes |
|||||||||
| 10 | Set decorative strips rear | CHROM RUS | 1 | 51138496725 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and M Shadow Line with expanded scope |
S715A=Yes S7M9A=Yes |
|||||||||
| 10 | Trim strip, trunk lid/tailgate | SCHWARZCHROM | 1 | 51138096135 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and M Shadow Line with expanded scope and Country-specific equipment Russia 10323 |
S715A=Yes S7M9A=No S8LRA=No |
|||||||||
| 10 | Trim strip, trunk lid/tailgate | CHROM | 1 | 51137481453 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and M Shadow Line with expanded scope and Country-specific equipment Russia 10323 |
S715A=No S7M9A=Yes S8LRA=No |
|||||||||
| 10 | Trim strip, trunk lid/tailgate | CHROM | 1 | 51137481453 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and M Shadow Line with expanded scope and Country-specific equipment Russia 10323 |
S715A=No S7M9A=No S8LRA=No |
|||||||||
| 10 | Trim strip, trunk lid/tailgate | CHROM | 1 | 51137481453 | Shop at ECS Tuning | |||||
| 11 | Trim cover, trunk lid, lower, primed | 1 | 51248491772 | Shop at ECS Tuning | ||||||
| 12 | Fastener | M5X9 | 2 | 07147146461 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Clip with washer, natur | WEIß | 12 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 14 | Holder | 6 | 51137357107 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Control of number-plate attachment |
L807A=No S992A=Yes |
|||||||||
| 15 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and M Aerodynamics package and Control of number-plate attachment |
L807A=Yes S715A=No S992A=Yes |
|||||||||
| 16 | Baseplate for license plate | 1 | 51137478679 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and M Aerodynamics package and Control of number-plate attachment |
L807A=Yes S715A=No S992A=No |
|||||||||
| 16 | Baseplate for license plate | 1 | 51137478679 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and M Aerodynamics package and Control of number-plate attachment |
L807A=No S715A=No S992A=Yes |
|||||||||
| 16 | Baseplate for license plate | 1 | 51137478679 | Shop at ECS Tuning | ||||||
| 17 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 18 | Phillips screw f plastic material | TS 5X13 | 2 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 19 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 20 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 20 | Washer | 4-200 HV-ZNFE | 4 | 07119904208 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 21 | Countersunk screw | M5X8,8-H-ZNFE | 4 | 07119906254 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Drip rail | 1 | 51767418734 | Shop at ECS Tuning | ||||||
| 23 | Foam seal | 1 | 51137401072 | Shop at ECS Tuning | ||||||
| 24 | Sealing strip | 2 | 07147306898 | Shop at ECS Tuning | ||||||
| 25 | Gasket | 2 | 51137401073 | Shop at ECS Tuning | ||||||
| 26 | Rubber buffer | 3 | 63217173556 | $1.17 | Shop at ECS Tuning | |||||
| 27 | Foam strip left | 1 | 51139879237 | Shop at ECS Tuning | ||||||
| 27 | Foam strip right | 1 | 51139879238 | Shop at ECS Tuning | ||||||
