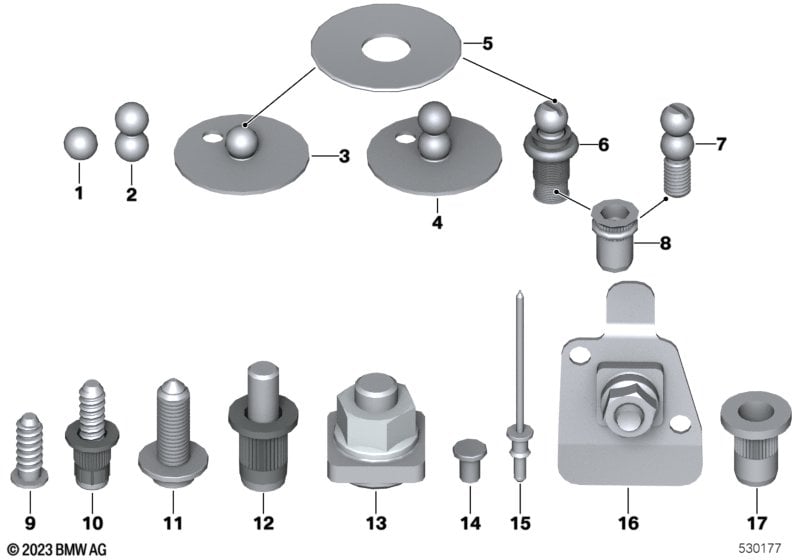

Bodywork additions, mounted parts for BMW 5 Series F10 LCI 520i (2016)
This Bodywork additions, mounted parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Single ball, suitable for welding | X | 07147378277 | Shop at ECS Tuning | ||||||
| 02 | Double ball, suitable for welding | X | 01/2023 | 07149388521 | Shop at ECS Tuning | |||||
| 03 | Single ball with adhesive flange | X | 07147446052 | Shop at ECS Tuning | ||||||
| 04 | Double ball with adhesive flange | X | 07147446053 | Shop at ECS Tuning | ||||||
| 05 | Shim | X | 52208144414 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Simple ball with threaded bolt | M5 | X | 07147446118 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Shim | X | 52208144414 | $0.32 | Shop at ECS Tuning | |||||
| 07 | Double ball with threaded bolt | M5 | X | 07147446125 | Shop at ECS Tuning | |||||
| 08 | Blind rivet nut, countersunk head | M5 L=15MM | X | 07149146352 | Shop at ECS Tuning | |||||
| 08 | Blind rivet nut, countersunk head | M5 L=11,6MM | X | 07149170605 | Shop at ECS Tuning | |||||
| 08 | Blind rivet nut, countersunk head | M5 L=20MM | X | 16117749583 | Shop at ECS Tuning | |||||
| 09 | Coarse-thread stud | L=14,2MM | X | 07147133425 | Shop at ECS Tuning | |||||
| 09 | Coarse thread bolt aluminum | L=15,5MM | X | 41128266111 | Shop at ECS Tuning | |||||
| 10 | Rivet pin wotj coarse thread | 0,5-3,0MM | X | 07147133779 | $2.51 | Shop at ECS Tuning | ||||
| 10 | Rivet pin wotj coarse thread | 1,5-4,0 MM | X | 07149121638 | Shop at ECS Tuning | |||||
| 11 | Threaded welding stud | M6X22 | X | 07147305206 | Shop at ECS Tuning | |||||
| 11 | Threaded weld bolt with scrape point | M6X22 | X | 07149265198 | Shop at ECS Tuning | |||||
| 12 | Rivet pin | M6X10,1 | X | 02/2020 | 07146989354 | ENDED | Shop at ECS Tuning | |||
| 12 | Rivet pin | M6X10,1 | X | 07147941928 | Shop at ECS Tuning | |||||
| 12 | Rivet pin | M5X10,5 | X | 07147116813 | $1.77 | Shop at ECS Tuning | ||||
| 12 | Rivet pin | M6X13,5 | X | 07147209624 | $0.91 | Shop at ECS Tuning | ||||
| 12 | Rivet pin | M6X26,7 | X | 07147266043 | Shop at ECS Tuning | |||||
| 12 | Rivet pin | M6X13,3 | X | 07149222648 | Shop at ECS Tuning | |||||
| 12 | Rivet pin | M6X6,3 | X | 11139178450 | Shop at ECS Tuning | |||||
| 12 | Rivet pin | M8X14,1 | X | 13328506195 | $5.37 | Shop at ECS Tuning | ||||
| 13 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 13 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 14 | T-welding stud | L=5,4MM | X | 41318412638 | Shop at ECS Tuning | |||||
| 15 | Repair rivet for T-bolt | 2,4X5MM | X | 07147075520 | $3.46 | ENDED | Shop at ECS Tuning | |||
| 15 | Repair rivet for T-bolt | 2,4X5MM | X | 07148497787 | ENDED | Shop at ECS Tuning | ||||
| 15 | Repair rivet for T-bolt | 2,4X8,5MM | X | 07148497788 | Shop at ECS Tuning | |||||
| 16 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
| 17 | Blind rivet nut, flat headed | M10 | X | 61257622385 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
