Trunk lid/closing system for BMW 3 Series F31 LCI 335dX (2019)
This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 335dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Reversing camera and Surround View |
S3AGA=Yes S5DLA=Yes |
|||||||||
| 01 | Boot lid/tailgate pushbutton | 1 | 51247463162 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Surround View |
S3AGA=Yes S5DLA=No |
|||||||||
| 01 | Boot lid/tailgate pushbutton | 1 | 51247463162 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Surround View |
S3AGA=No S5DLA=Yes |
|||||||||
| 01 | Boot lid/tailgate pushbutton | 1 | 51247463162 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Surround View |
S3AGA=No S5DLA=No |
|||||||||
| 01 | Boot lid/tailgate pushbutton | 1 | 51247463161 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Surround View Important notice! Observe product information. Use "Only in conjunction with" parts. |
S3AGA=No S5DLA=No |
|||||||||
| 01 | Boot lid/tailgate pushbutton | ICAM | 1 | 51247463163 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy trim, camera system | SCHWARZ | 1 | 66535A50B79 | Shop at ECS Tuning | |||||
| -- | Cover for rearview camera | ICAM | 1 | 51247463164 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Surround View |
S3AGA=Yes S5DLA=No |
|||||||||
| 02 | Cover for rearview camera | ICAM | 1 | 07/2017 | 51247463164 | Shop at ECS Tuning | ||||
| 02 | Cover for rearview camera | ICAM | 1 | 09/2017 | 51247463164 | Shop at ECS Tuning | ||||
| 03 | Trunk lid lock, top | 1 | 03/2013 | 51247269543 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Protection cap | 1 | 51247224692 | Shop at ECS Tuning | ||||||
| 06 | Striker trunk lid | 1 | 51247211294 | Shop at ECS Tuning | ||||||
| 07 | Torx screw | M8X20-PC-8.8 | 2 | 07129905491 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Sensor wire for Smart Opener, top | 1 | 61357391042 | Shop at ECS Tuning | ||||||
| 09 | Sensor wire for Smart Opener, bottom | 1 | 61357391043 | Shop at ECS Tuning | ||||||
| 10 | Control unit for Smart Opener | 1 | 61357491439 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 11 | Plug, black | D=5MM | 7 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 12 | Trunk lid power lock drive | 1 | 51247269516 | Shop at ECS Tuning | ||||||
| 13 | Support | 1 | 51247349307 | Shop at ECS Tuning | ||||||
| 14 | Clip | 1 | 07147317079 | Shop at ECS Tuning | ||||||
| 15 | Stop buffer | 2 | 51247161069 | $19.50 | Shop at ECS Tuning | |||||
| 17 | Bowden cable | 1 | 51247249683 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F31 LCI 335dX Trunk lid/closing system?

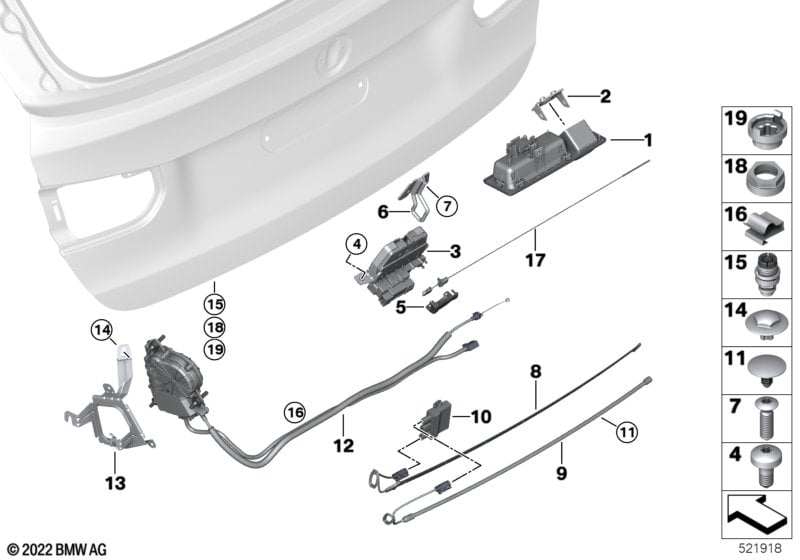

- This technical diagram illustrates the Trunk lid/closing system within the Bodywork group for the 3 Series F31 LCI 335dX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Boot lid/tailgate pushbutton (Part #51247463162).
