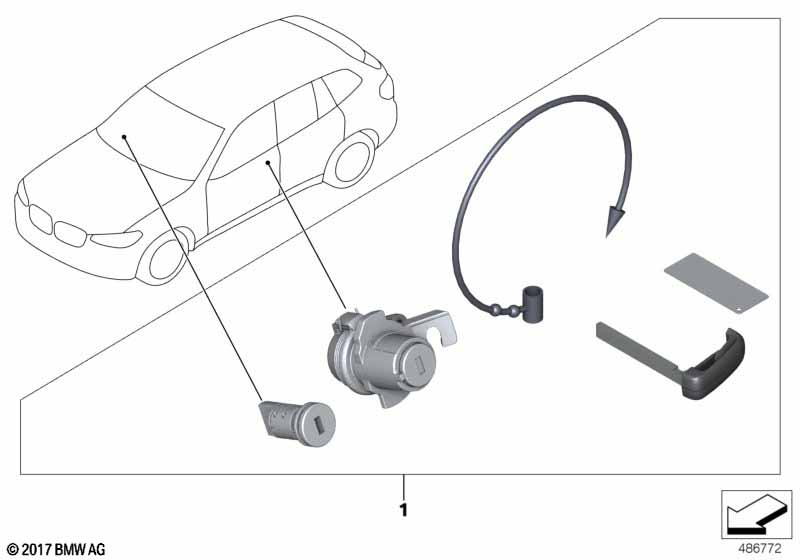

Master key locking for BMW 3 Series G20 Sedan LCI M340iX (2025)
This Master key locking technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set uniform locking system, coded | RL | 1 | 51217421507 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle |
S138A=Yes |
|||||||||
| 01 | Set uniform locking system, coded | RL / EFZ | 1 | 51215A58B40 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI M340iX Master key locking?
- This technical diagram illustrates the Master key locking within the Bodywork group for the 3 Series G20 Sedan LCI M340iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Set uniform locking system, coded (Part #51217421507).
- Which models use the hardware listed in this Master key locking?
- The hardware and components featured in the Master key locking are specific to the 3 Series G20 Sedan LCI M340iX produced during 2025. These technical specifications ensure that parts like the Set uniform locking system, coded (51217421507) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Master key locking assembly?
- Each item in the Master key locking corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI M340iX, you can identify the Set uniform locking system, coded by locating its position on the schematic, which then links to the official BMW part number 51217421507 for the Bodywork section.
