Trunk lid, mounting parts for BMW 3 Series G21 Touring LCI 330e (2024)

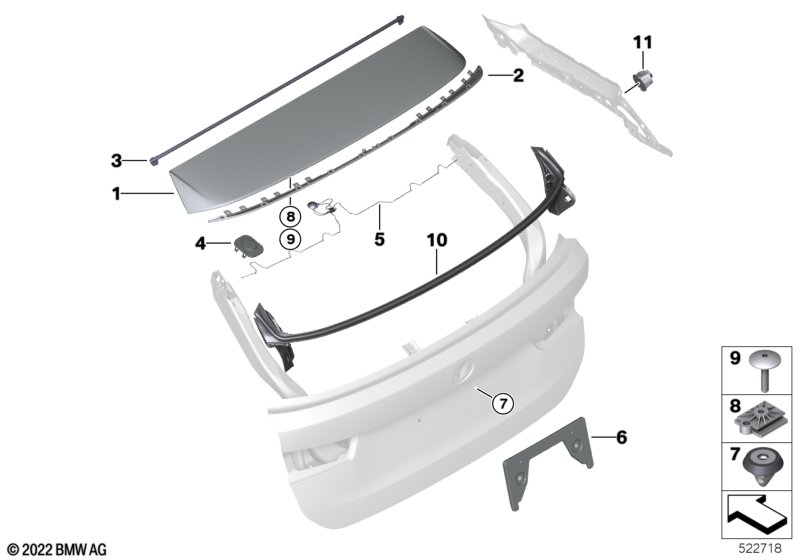

This Trunk lid, mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed rear spoiler | 1 | 51628497197 | Shop at ECS Tuning | ||||||
| 02 | Cover panel for spoiler center | 1 | 51627453478 | Shop at ECS Tuning | ||||||
| 03 | Seal roof rear | 1 | 51767453391 | Shop at ECS Tuning | ||||||
| 04 | Cover for screw connection of hinge | 2 | 51247390380 | Shop at ECS Tuning | ||||||
| 05 | Spoiler sensor AM/FM | 1 | 65206838578 | Shop at ECS Tuning | ||||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 06 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
| 08 | Slider | 4 | 07147270044 | Shop at ECS Tuning | ||||||
| 09 | Countersunk screw | 4 | 07147270046 | Shop at ECS Tuning | ||||||
| 10 | Seal, rear window bottom | 1 | 51767453390 | Shop at ECS Tuning | ||||||
| 11 | Warning signal unit | 1 | 51627482572 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 330e Trunk lid, mounting parts?
- This technical diagram illustrates the Trunk lid, mounting parts within the Bodywork group for the 3 Series G21 Touring LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Primed rear spoiler (Part #51628497197).
- Which models use the hardware listed in this Trunk lid, mounting parts?
- The hardware and components featured in the Trunk lid, mounting parts are specific to the 3 Series G21 Touring LCI 330e produced during 2024. These technical specifications ensure that parts like the Primed rear spoiler (51628497197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid, mounting parts assembly?
- Each item in the Trunk lid, mounting parts corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 330e, you can identify the Primed rear spoiler by locating its position on the schematic, which then links to the official BMW part number 51628497197 for the Bodywork section.
