Hood locking system for BMW 7 Series G70 740d (2024)

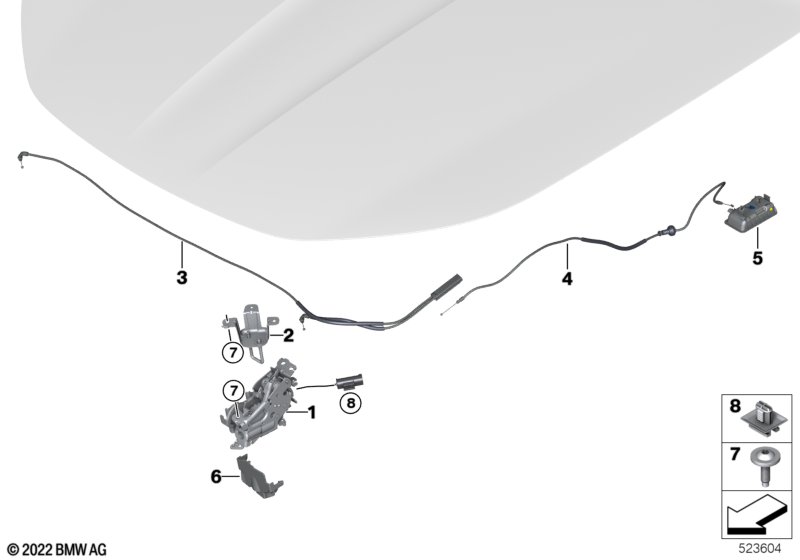

This Hood locking system technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 01 | Lock passive with switch | 1 | 51239879997 | Shop at ECS Tuning | ||||||
| 01 | Door lock passive | 1 | 51239879998 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Lock active with switch | 1 | 51239880005 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection Achtung! Schloss hat eine Ringfeder im Sichtbereich weniger. |
S8TFA=Yes |
|||||||||
| 01 | Lock active | 1 | 51239880006 | Shop at ECS Tuning | ||||||
| 02 | Upper lock part left | 1 | 51239464373 | Shop at ECS Tuning | ||||||
| 02 | Upper lock part right | 1 | 51239852438 | Shop at ECS Tuning | ||||||
| 03 | Bowden cable hood front | 1 | 51239464375 | Shop at ECS Tuning | ||||||
| 04 | Bowden cable hood rear | 1 | 51239464374 | Shop at ECS Tuning | ||||||
| 05 | Holder hood release | 1 | 51235A12C50 | Shop at ECS Tuning | ||||||
| 06 | Cover lock left | 1 | 51769880967 | Shop at ECS Tuning | ||||||
| 06 | Cover lock right | 1 | 51769880968 | Shop at ECS Tuning | ||||||
| 07 | Oval-head screw with washer | ISA M6X21 | 10 | 07147263759 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 08 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 08 | Plug-in connection bracket | 3 | 61139285769 | Shop at ECS Tuning | ||||||
