Front side panel for BMW 3 Series G80 M3 M3 (2024)

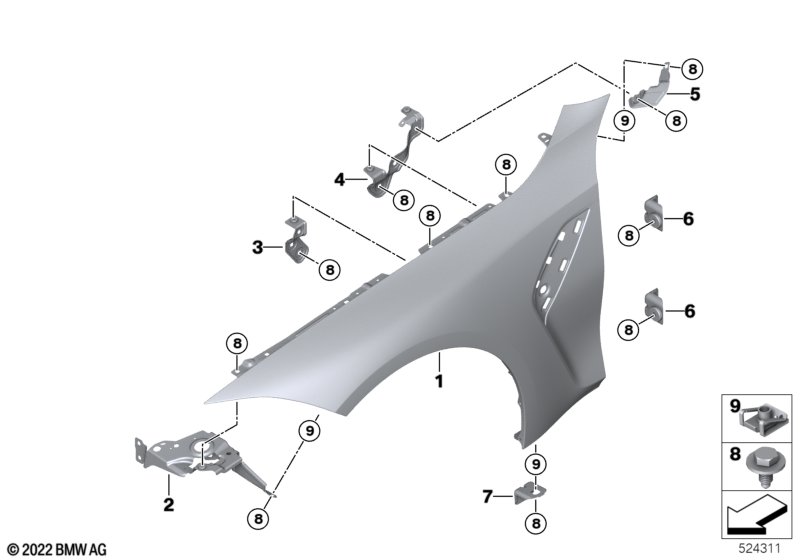

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 41008082027 | Shop at ECS Tuning | ||||||
| 01 | Side panel, front right | 1 | 41008082028 | Shop at ECS Tuning | ||||||
| 02 | Side panel bracket, front left 1 | 1 | 41008082031 | Shop at ECS Tuning | ||||||
| 02 | Side panel bracket, front right 1 | 1 | 41008082032 | Shop at ECS Tuning | ||||||
| 03 | Side panel bracket, front left 2 | 1 | 41009466089 | Shop at ECS Tuning | ||||||
| 03 | Side panel bracket, front right 2 | 1 | 41009466090 | Shop at ECS Tuning | ||||||
| 04 | Side panel bracket, front left 3 | 1 | 41009466087 | Shop at ECS Tuning | ||||||
| 04 | Side panel bracket, front right 3 | 1 | 41009466088 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front left 4 | 1 | 41007488119 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front right 4 | 1 | 41007488120 | Shop at ECS Tuning | ||||||
| 06 | Bracket side panel A-pillar center | 2 | 41008495775 | Shop at ECS Tuning | ||||||
| 07 | Bracket, side panel column A | 1 | 01/2025 | 41117174365 | $1.85 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 2 | 01/2025 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 01/2025 | 83192158654 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 01/2025 | 83192211217 | Shop at ECS Tuning | ||||
| 07 | Bracket, side panel column A | 1 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 2 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12 | 16 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Body nut | M6 | 3 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
