Hood / mounted parts for BMW 7 Series G70 740iX (2025)

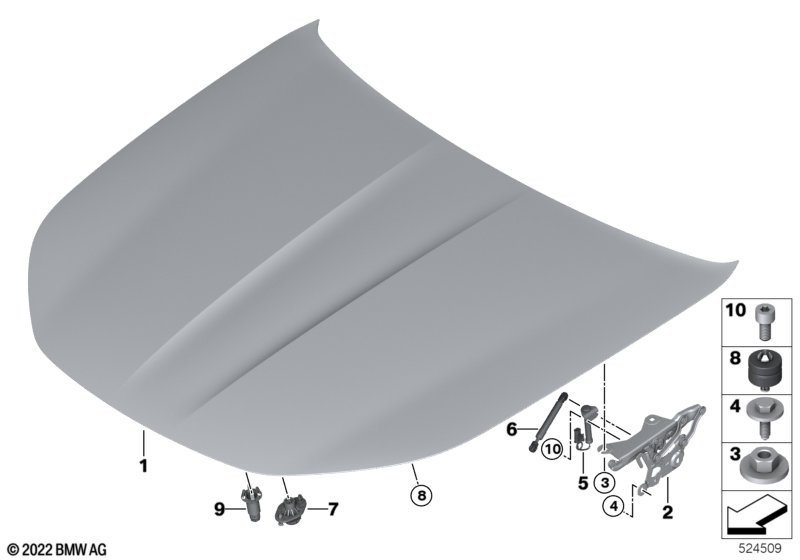

This Hood / mounted parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aluminium engine hood | 1 | 41619628638 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41009629221 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41009629222 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 05 | Actuator | K3 | 2 | 51239464341 | Shop at ECS Tuning | |||||
| 06 | Gas pressurized spring, hood | 2 | 51239451211 | Shop at ECS Tuning | ||||||
| 07 | Breakthrough buffer | 2 | 51247459026 | Shop at ECS Tuning | ||||||
| 08 | Stop buffer | 3 | 51237162448 | $3.52 | Shop at ECS Tuning | |||||
| 09 | Adjuster | 2 | 51239465000 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 10 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740iX Hood / mounted parts?
- This technical diagram illustrates the Hood / mounted parts within the Bodywork group for the 7 Series G70 740iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Aluminium engine hood (Part #41619628638).
- Which models use the hardware listed in this Hood / mounted parts?
- The hardware and components featured in the Hood / mounted parts are specific to the 7 Series G70 740iX produced during 2025. These technical specifications ensure that parts like the Aluminium engine hood (41619628638) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood / mounted parts assembly?
- Each item in the Hood / mounted parts corresponds to the numbered list below the illustration. For the 7 Series G70 740iX, you can identify the Aluminium engine hood by locating its position on the schematic, which then links to the official BMW part number 41619628638 for the Bodywork section.
