Trunk lid for BMW 7 Series G70 M760eX (2024)

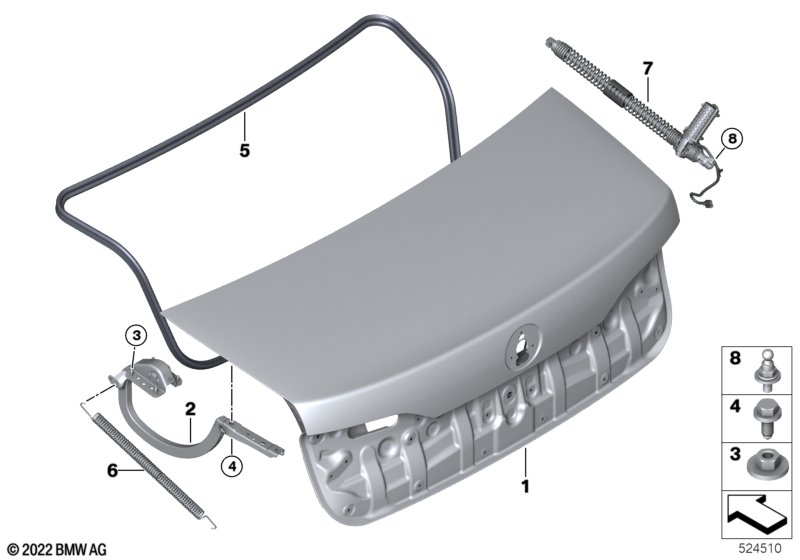

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid, aluminum | 1 | 41009466967 | Shop at ECS Tuning | ||||||
| 02 | Tailgate hinge left | 1 | 41625A28667 | Shop at ECS Tuning | ||||||
| 02 | Tailgate hinge right | 1 | 41625A28668 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X18 | 4 | 07147279964 | Shop at ECS Tuning | |||||
| 05 | Tailgate seal | 1 | 51765A5AB06 | Shop at ECS Tuning | ||||||
| 06 | Tension spring | 1 | 51249466986 | Shop at ECS Tuning | ||||||
| 07 | Spindle drive right | 1 | 51249466987 | Shop at ECS Tuning | ||||||
| 08 | Ball pin | 2 | 41637184053 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Trunk lid?
- This technical diagram illustrates the Trunk lid within the Bodywork group for the 7 Series G70 M760eX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid, aluminum (Part #41009466967).
- Which models use the hardware listed in this Trunk lid?
- The hardware and components featured in the Trunk lid are specific to the 7 Series G70 M760eX produced during 2024. These technical specifications ensure that parts like the Trunk lid, aluminum (41009466967) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid assembly?
- Each item in the Trunk lid corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Trunk lid, aluminum by locating its position on the schematic, which then links to the official BMW part number 41009466967 for the Bodywork section.
