Front side panel for BMW 7 Series G70 735i (2025)

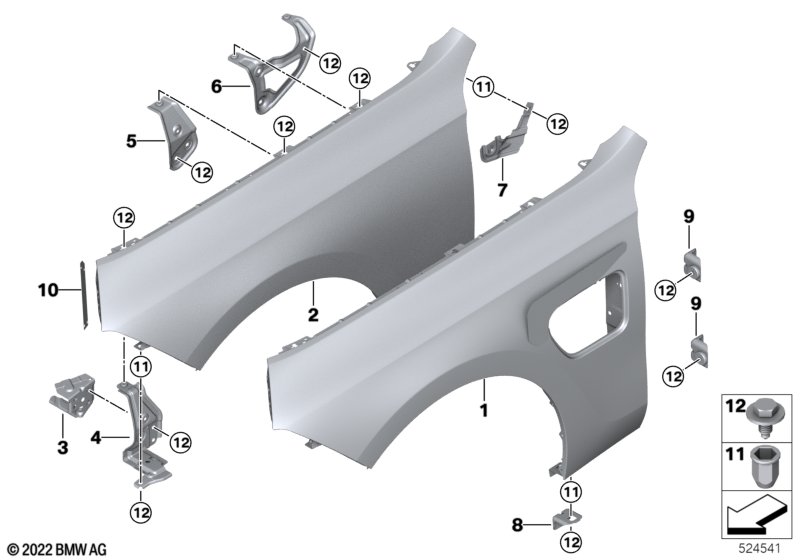

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Side panel, aluminum, front left | 1 | 41359628641 | Shop at ECS Tuning | ||||||
| 02 | Side panel, aluminum, front right | 1 | 41359628642 | Shop at ECS Tuning | ||||||
| 03 | Bracket, deformation element, front left | 1 | 41145A37987 | Shop at ECS Tuning | ||||||
| 03 | Bracket, deformation element, fr. right | 1 | 41145A37988 | Shop at ECS Tuning | ||||||
| 04 | Side panel bracket, front left 1 | 1 | 41355A2F563 | Shop at ECS Tuning | ||||||
| 04 | Side panel bracket, front right 1 | 1 | 41355A2F564 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front left 2 | 1 | 41355A2F565 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front right 2 | 1 | 41355A2F566 | Shop at ECS Tuning | ||||||
| 06 | Side panel bracket, front left 3 | 1 | 41355A2F567 | Shop at ECS Tuning | ||||||
| 06 | Side panel bracket, front right 3 | 1 | 41355A2F568 | Shop at ECS Tuning | ||||||
| 07 | Side panel bracket, front left 4 | 1 | 41215A37B55 | Shop at ECS Tuning | ||||||
| 07 | Side panel bracket, front right 4 | 1 | 41215A37B56 | Shop at ECS Tuning | ||||||
| 08 | Bracket, side panel column A | 1 | 41117174365 | $1.85 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 2 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 09 | Bracket side panel A-pillar center | 2 | 41008495775 | Shop at ECS Tuning | ||||||
| 10 | Abrasion protection foil front | SEITENWAND | 1 | 51719628915 | NoS | Shop at ECS Tuning | ||||
| 11 | Blind rivet nut | M6X16,5 | 3 | 07149448012 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X12 | 16 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
