Splash wall parts for BMW 7 Series G70 740iX (2025)

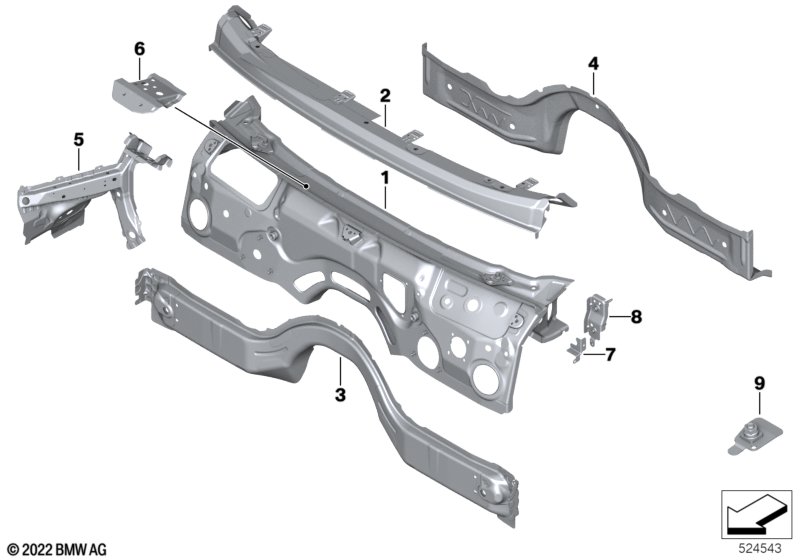

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | 1 | 41135A37950 | Shop at ECS Tuning | ||||||
| 02 | Cross member, splash wall | 1 | 41118844228 | NoS | Shop at ECS Tuning | |||||
| 03 | Supporting strut, front wall | 1 | 41118844237 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement for bulkhead, lower | 1 | 41007412972 | NoS | Shop at ECS Tuning | |||||
| 05 | Left engine compartment partition | 1 | 41007412947 | Shop at ECS Tuning | ||||||
| 05 | Right engine compartment partition | 1 | 41007412948 | Shop at ECS Tuning | ||||||
| 06 | Mount, strut tower brace, left | 1 | 41118844235 | NoS | Shop at ECS Tuning | |||||
| 06 | Mount, strut tower brace, right | 1 | 41118844236 | NoS | Shop at ECS Tuning | |||||
| 07 | Reinforcing mount f supporting tube,left | 1 | 41007446673 | NoS | Shop at ECS Tuning | |||||
| 07 | Reinforcing mount f supporting tube,rig. | 1 | 41007446674 | Shop at ECS Tuning | ||||||
| 08 | Mount, supporting tube, left | 1 | 41007412977 | Shop at ECS Tuning | ||||||
| 08 | Mount, supporting tube, right | 1 | 41007412978 | Shop at ECS Tuning | ||||||
| 09 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 09 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
