Outer panels for BMW 7 Series G70 735i (2025)

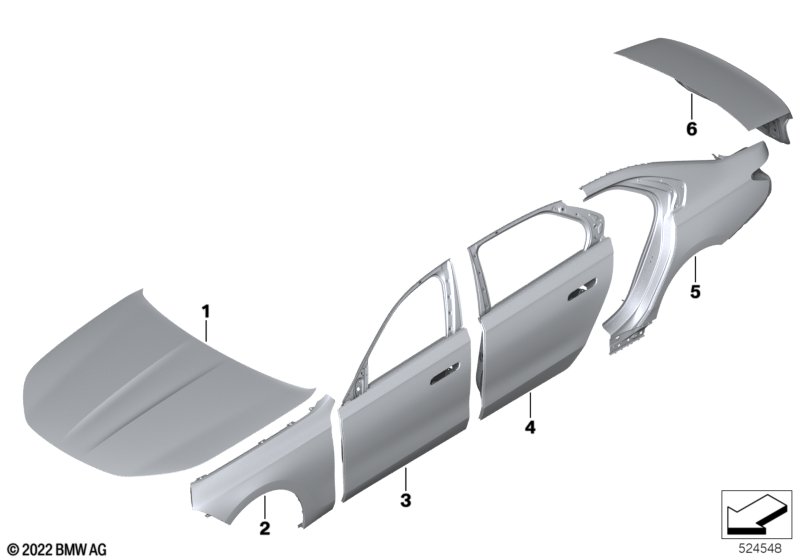

This Outer panels technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aluminium engine hood | 1 | 41619628638 | Shop at ECS Tuning | ||||||
| 02 | Side panel, aluminum, front right | 1 | 41359628642 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China |
L807A=No L8AAA=No |
|||||||||
| 02 | Side panel, aluminum, front left | 1 | 41359628641 | Shop at ECS Tuning | ||||||
| 03 | Door aluminum left front | 1 | 41515A6C473 | Shop at ECS Tuning | ||||||
| 03 | Door aluminum right front | 1 | 41515A6C474 | Shop at ECS Tuning | ||||||
| 04 | Door aluminum rear left | 1 | 41525A32D57 | Shop at ECS Tuning | ||||||
| 04 | Door aluminum right rear | 1 | 41525A32D58 | Shop at ECS Tuning | ||||||
| 05 | Left rear side panel | 1 | 41215A37B71 | Shop at ECS Tuning | ||||||
| 05 | Right rear side panel | 1 | 41215A37B72 | Shop at ECS Tuning | ||||||
| 06 | Trunk lid, aluminum | 1 | 41009466967 | Shop at ECS Tuning | ||||||
