Mounting parts for trunk floor panel for BMW 7 Series G70 740i (2025)

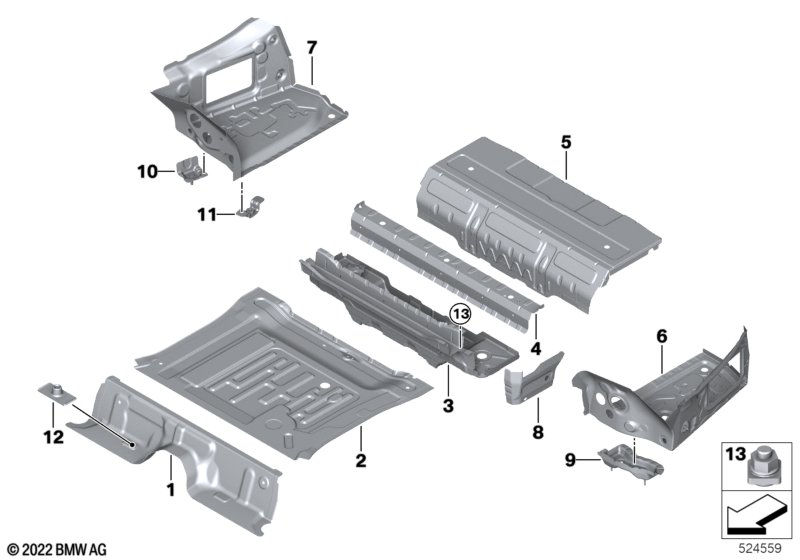

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front cross member for rear axle carrier | 1 | 41118844260 | NoS | Shop at ECS Tuning | |||||
| 02 | Front trunk floor | 1 | 41009450008 | NoS | Shop at ECS Tuning | |||||
| 03 | Cross member, trunk floor rear | 1 | 41125A37980 | NoS | Shop at ECS Tuning | |||||
| 04 | Cross member, trunk floor rear | 1 | 41007413081 | Shop at ECS Tuning | ||||||
| 05 | Luggage compartment floor, rear | 1 | 41007431643 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 18 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 06 | Trunk floor left | 1 | 41145A37A97 | Shop at ECS Tuning | ||||||
| 07 | Trunk floor right | 1 | 41145A37A98 | Shop at ECS Tuning | ||||||
| 08 | Trunk tub left | 1 | 41125A379A3 | NoS | Shop at ECS Tuning | |||||
| 08 | luggage compartment liner right | 1 | 41125A379A4 | NoS | Shop at ECS Tuning | |||||
| 09 | Mount for air-supply system | 1 | 41145A37A94 | Shop at ECS Tuning | ||||||
| 10 | Mount for SCR container | 2 | 41007436957 | Shop at ECS Tuning | ||||||
| 11 | Bracket activated Carbon container | M6 | 2 | 41007431655 | Shop at ECS Tuning | |||||
| 12 | Welding nut | M8 | 2 | 07149115672 | Shop at ECS Tuning | |||||
| 13 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 13 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
