Rear wheel arch for BMW 7 Series G70 750eX (2025)

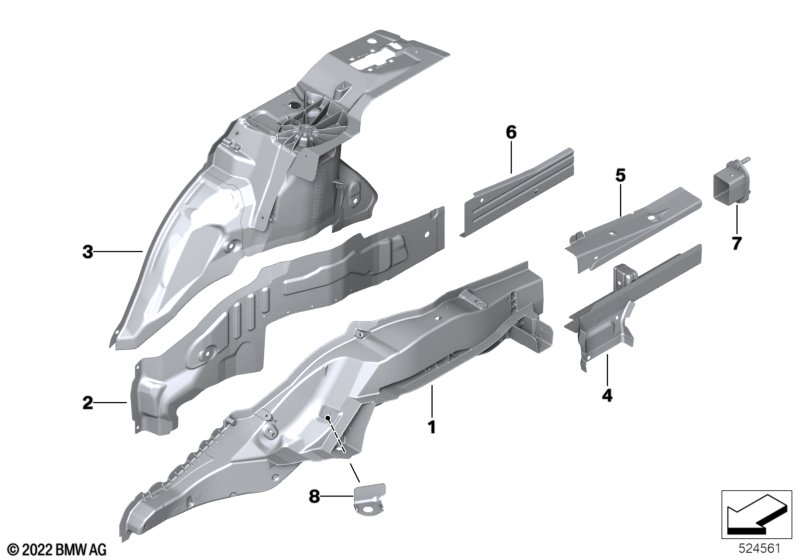

This Rear wheel arch technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side member, inner left | 1 | 41118844253 | NoS | Shop at ECS Tuning | |||||
| 01 | Side member, inner right | 1 | 41118844254 | NoS | Shop at ECS Tuning | |||||
| 02 | End plate side member rear left | 1 | 41118844273 | Shop at ECS Tuning | ||||||
| 02 | End plate side member right rear | 1 | 41118844274 | Shop at ECS Tuning | ||||||
| 03 | Rear left wheelhouse, inner half | 1 | 41145A37AA1 | NoS | Shop at ECS Tuning | |||||
| 03 | Rear right wheelhouse, inner half | 1 | 41145A37AA2 | NoS | Shop at ECS Tuning | |||||
| 04 | Extension, side member, lower left | 1 | 41118844249 | Shop at ECS Tuning | ||||||
| 04 | Extension, side member, lower right | 1 | 41118844250 | Shop at ECS Tuning | ||||||
| 05 | Extension, side member, upper left | 1 | 41007413043 | Shop at ECS Tuning | ||||||
| 05 | Extension, side member, upper right | 1 | 41007413044 | Shop at ECS Tuning | ||||||
| 06 | Extension, side member, side, left | 1 | 41118844271 | Shop at ECS Tuning | ||||||
| 06 | Extension, side member, side, right | 1 | 41118844272 | Shop at ECS Tuning | ||||||
| 07 | Mount, bumper left | 1 | 41009630049 | Shop at ECS Tuning | ||||||
| 07 | Mount, bumper right | 1 | 41009630050 | Shop at ECS Tuning | ||||||
| 08 | Holder, brake hose, left | 1 | 41007413083 | Shop at ECS Tuning | ||||||
| 08 | Holder, brake hose, right | 1 | 41007413084 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX Rear wheel arch?
- This technical diagram illustrates the Rear wheel arch within the Bodywork group for the 7 Series G70 750eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Side member, inner left (Part #41118844253).
- Which models use the hardware listed in this Rear wheel arch?
- The hardware and components featured in the Rear wheel arch are specific to the 7 Series G70 750eX produced during 2025. These technical specifications ensure that parts like the Side member, inner left (41118844253) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear wheel arch assembly?
- Each item in the Rear wheel arch corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the Side member, inner left by locating its position on the schematic, which then links to the official BMW part number 41118844253 for the Bodywork section.
