Tailgate closing system for BMW 3 Series G28 Sedan LCI 320Ld (2024)

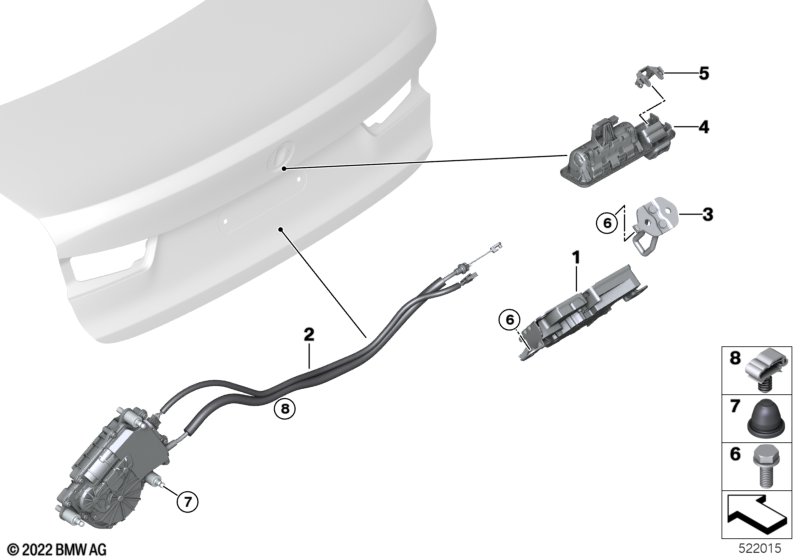

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 01 | Trunk lid lock | 1 | 51247441014 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 01 | Trunk lid lock | 1 | 51247383283 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 02 | Soft-Close-Automatic | 1 | 51247430626 | Shop at ECS Tuning | ||||||
| 03 | Striker trunk lid | 1 | 51247498893 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=No S5DNA=No |
|||||||||
| 04 | Boot lid/tailgate pushbutton | BASIS | 1 | 51247405633 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus Important notice! Observe product information. Use "Only in conjunction with" parts. |
S3AGA=No S5DMA=No S5DNA=No |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy trim, camera system | SCHWARZ | 1 | 66535A50B79 | Shop at ECS Tuning | |||||
| -- | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=No |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=No |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=No |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=No S5DNA=Yes |
|||||||||
| 05 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X20-U1-8.8 | 4 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 07 | Snap-lock coupling | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 08 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
