Trunk lid for BMW 3 Series G28 Sedan LCI 325LiX (2024)

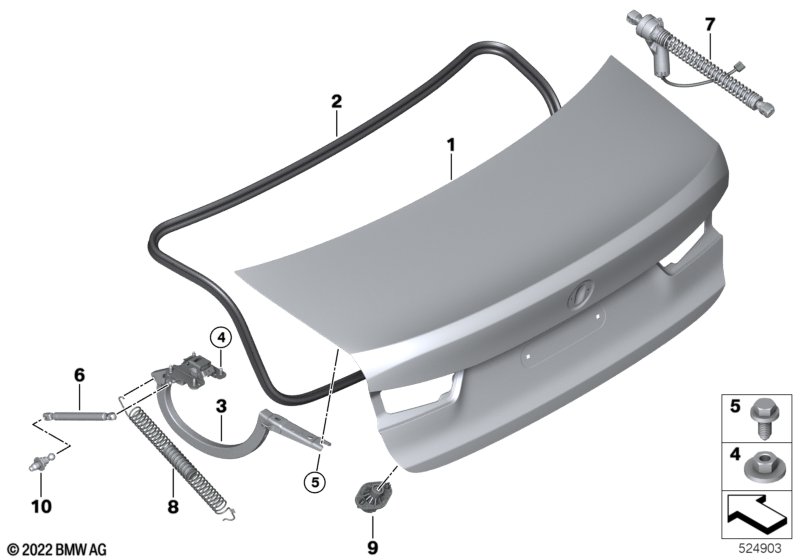

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 325LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007455942 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment kit, tailgate | VALUE PARTS | 1 | 41009650359 | Shop at ECS Tuning | |||||
| 02 | Trunk lid sealing | 1 | 51765A32E85 | Shop at ECS Tuning | ||||||
| 03 | Left trunk lid hinge | 1 | 41007481967 | Shop at ECS Tuning | ||||||
| 03 | Right trunk lid hinge | 1 | 41007481968 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M8 | 8 | 07149302543 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X18 | 8 | 07147279964 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 06 | Dashpot trunk lid | 1 | 51247450612 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 07 | Spindle drive, tailgate | 1 | 51247430644 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 08 | Tension spring, trunk lid/tailgate | 2 | 51247430614 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 08 | Tension spring, trunk lid/tailgate | 1 | 51247430614 | Shop at ECS Tuning | ||||||
| 09 | Breakthrough buffer | 2 | 51147458725 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 10 | Ball pin | 1 | 41007458666 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 10 | Ball pin | 1 | 51249465436 | Shop at ECS Tuning | ||||||
