Side frame section, center for BMW 5 Series G90 M5 M5 (2025)

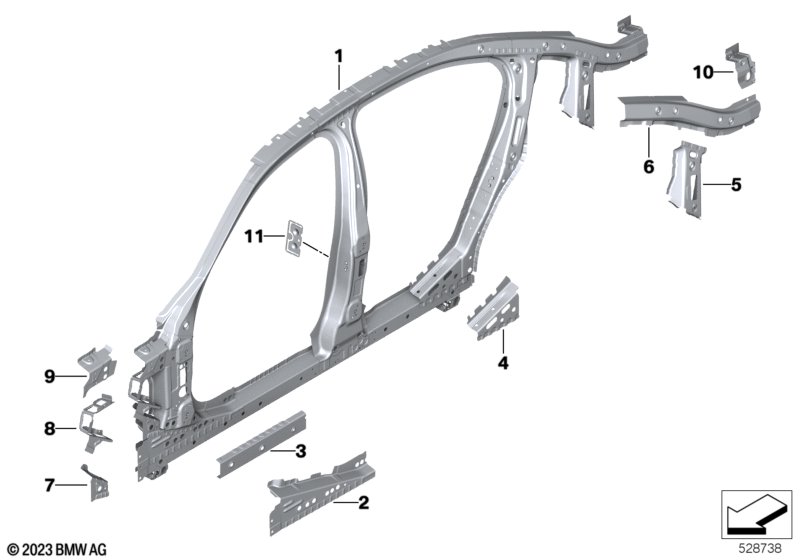

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame center left | 1 | 41219627219 | NoS | Shop at ECS Tuning | |||||
| 01 | Side frame center right | 1 | 41219627220 | NoS | Shop at ECS Tuning | |||||
| 02 | Support, carrier support, left | 1 | 41219635495 | NoS | Shop at ECS Tuning | |||||
| 02 | Support, carrier support, right | 1 | 41219635496 | NoS | Shop at ECS Tuning | |||||
| 03 | Bulkhead side member left front | 1 | 41219635499 | NoS | Shop at ECS Tuning | |||||
| 03 | Bulkhead side member right front | 1 | 41219635500 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement door sill left | 1 | 41219635509 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement door sill right | 1 | 41219635510 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement C-pillar left | 1 | 41219635501 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement C-pillar right | 1 | 41219635502 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, interior roof frame, left | 1 | 41219635511 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, interior roof frame,right | 1 | 41219635512 | NoS | Shop at ECS Tuning | |||||
| 07 | Crash reinforcement left | 1 | 41219635507 | NoS | Shop at ECS Tuning | |||||
| 07 | Crash reinforcement right | 1 | 41219635508 | NoS | Shop at ECS Tuning | |||||
| 08 | Bulkhead plate, A-pillar left | 1 | 41219635497 | NoS | Shop at ECS Tuning | |||||
| 08 | Bulkhead plate, A-pillar right | 1 | 41219635498 | NoS | Shop at ECS Tuning | |||||
| 09 | Extension, wheel housing strut left | 1 | 41219635493 | NoS | Shop at ECS Tuning | |||||
| 09 | Extension, wheel housing strut right | 1 | 41219635494 | NoS | Shop at ECS Tuning | |||||
| 10 | Console opener, left | 1 | 41219635503 | NoS | Shop at ECS Tuning | |||||
| 10 | Console opener, right | 1 | 41219635504 | NoS | Shop at ECS Tuning | |||||
| 11 | Threaded plate, striker | 2 | 41009852058 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
