Roof for BMW 5 Series G60 Sedan 520dX (2025)

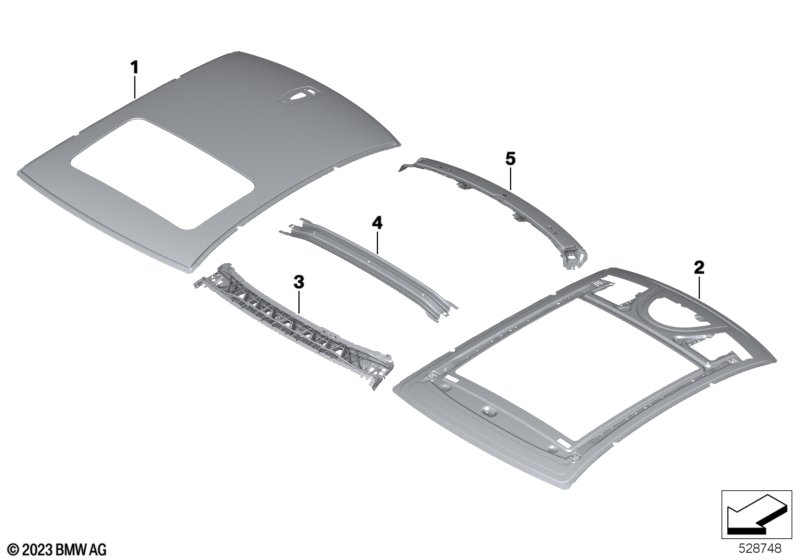

This Roof technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 01 | Roof outer skin | 1 | 41315A6AB42 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 02 | Frame Sky Lounge panoramic glass sunroof | PANORAM.SUNROOF | 1 | 41315A6AB45 | NoS | Shop at ECS Tuning | ||||
| 03 | Upper apron | 1 | 41315A6AAE9 | NoS | Shop at ECS Tuning | |||||
| 04 | Roof bow | 1 | 41315A6AB38 | NoS | Shop at ECS Tuning | |||||
| 05 | Rear window frame upper part | 1 | 41315A6AB30 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
