Hood locking system for BMW 5 Series G60 Sedan 530e (2025)

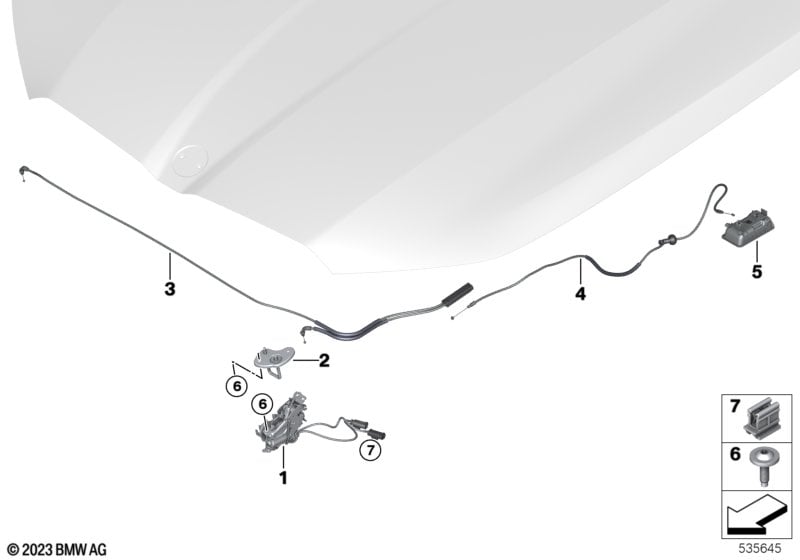

This Hood locking system technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Lock active with switch | 1 | 51239880005 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection Achtung! Schloss hat eine Ringfeder im Sichtbereich weniger. |
S8TFA=Yes |
|||||||||
| 01 | Lock active | 1 | 51239880006 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 01 | Lock passive with switch | 1 | 51239879997 | Shop at ECS Tuning | ||||||
| 01 | Door lock passive | 1 | 51239879998 | Shop at ECS Tuning | ||||||
| 02 | Lock top part | 2 | 51237473707 | Shop at ECS Tuning | ||||||
| 03 | Bowden cable hood front | 1 | 51239464375 | Shop at ECS Tuning | ||||||
| 04 | Bowden cable hood latch | 1 | 51235A87BC2 | Shop at ECS Tuning | ||||||
| 05 | Holder hood release | 1 | 51235A12C50 | Shop at ECS Tuning | ||||||
| 06 | Oval-head screw with washer | ISA M6X21 | 8 | 07147263759 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 07 | Plug-in connection bracket | 3 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
