Hood seals for BMW 5 Series G60 Sedan 520i (2025)

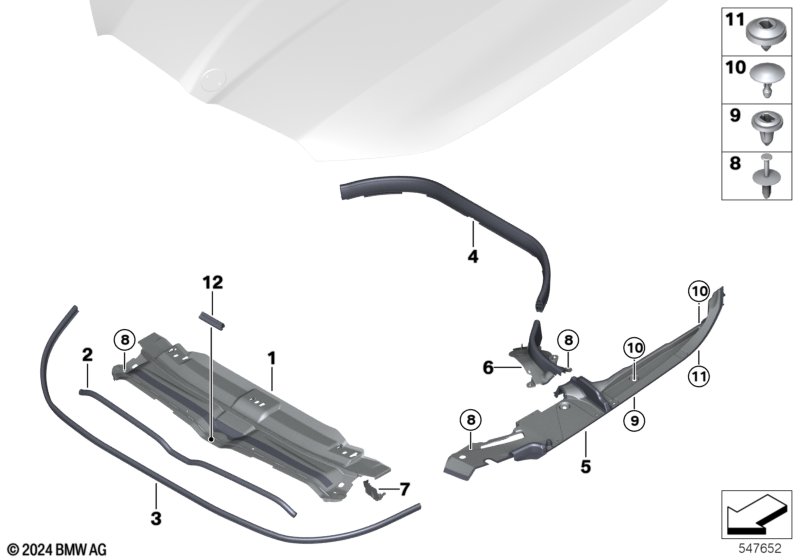

This Hood seals technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Iconic Glow exterior package |
S3DPA=No |
|||||||||
| 01 | Cover, engine compartment, front center | 1 | 51765B31D27 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Iconic Glow exterior package |
S3DPA=Yes |
|||||||||
| 01 | Cover, engine compartment, front center | 1 | 51765A12203 | Shop at ECS Tuning | ||||||
| 02 | Seal, cover, front | 1 | 51765A87764 | Shop at ECS Tuning | ||||||
| 03 | Hood seal front | 1 | 51745A01589 | Shop at ECS Tuning | ||||||
| 04 | Hood seal rear center | 1 | 51749464367 | Shop at ECS Tuning | ||||||
| 05 | Seal side panel left | 1 | 51745A01593 | Shop at ECS Tuning | ||||||
| 05 | Seal side panel right | 1 | 51745A01594 | Shop at ECS Tuning | ||||||
| 06 | Gasket hood side left | 1 | 51745A01591 | Shop at ECS Tuning | ||||||
| 06 | Gasket hood side right | 1 | 51745A01592 | Shop at ECS Tuning | ||||||
| 07 | Cover lock left | 1 | 51769880967 | Shop at ECS Tuning | ||||||
| 07 | Cover lock right | 1 | 51769880968 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | 18 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 09 | Clip, bottom part | 4 | 07147446452 | Shop at ECS Tuning | ||||||
| 10 | Clip, upper part | 6 | 51717048316 | $1.45 | Shop at ECS Tuning | |||||
| 11 | Clip, bottom part | 2 | 07147469317 | Shop at ECS Tuning | ||||||
