Hood / mounted parts for BMW 4 Series G22 Coupé LCI 420d (2025)

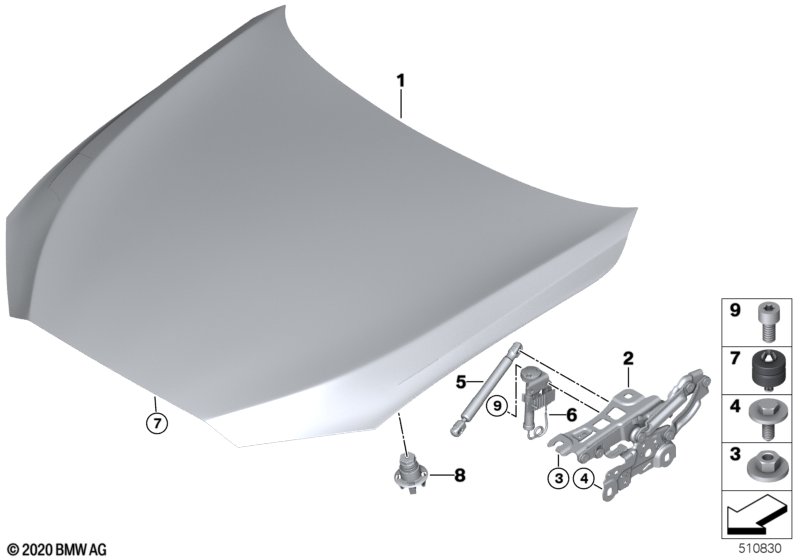

This Hood / mounted parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aluminium engine hood | 1 | 41009466097 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41008494431 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41008494432 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 8 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X25 | 8 | 07149231837 | Shop at ECS Tuning | |||||
| 05 | Gas spring front flap, passive | 2 | 51239463396 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 06 | Actor, left | 1 | 51237449429 | Shop at ECS Tuning | ||||||
| 06 | Actor, right | 1 | 51237449430 | Shop at ECS Tuning | ||||||
| 07 | Stop buffer | 2 | 51237162448 | $3.52 | Shop at ECS Tuning | |||||
| 08 | Adjuster | 2 | 51767348121 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 09 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
