Trunk lid, mounting parts for BMW 4 Series G23 Convertible LCI 430i (2025)

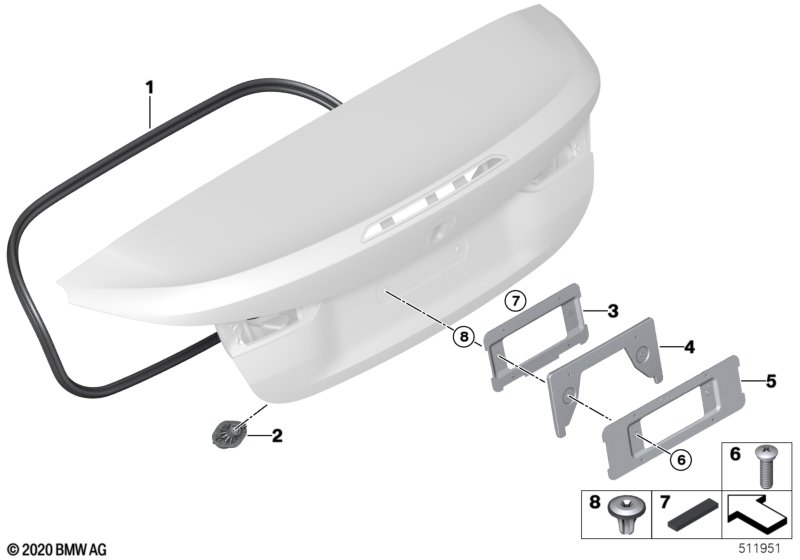

This Trunk lid, mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid sealing | 1 | 51769478549 | Shop at ECS Tuning | ||||||
| 02 | Breakthrough buffer | 2 | 51147458725 | Shop at ECS Tuning | ||||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 03 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 06 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 07 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | 2 | 51139881257 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 430i Trunk lid, mounting parts?
- This technical diagram illustrates the Trunk lid, mounting parts within the Bodywork group for the 4 Series G23 Convertible LCI 430i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid sealing (Part #51769478549).
- Which models use the hardware listed in this Trunk lid, mounting parts?
- The hardware and components featured in the Trunk lid, mounting parts are specific to the 4 Series G23 Convertible LCI 430i produced during 2025. These technical specifications ensure that parts like the Trunk lid sealing (51769478549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid, mounting parts assembly?
- Each item in the Trunk lid, mounting parts corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 430i, you can identify the Trunk lid sealing by locating its position on the schematic, which then links to the official BMW part number 51769478549 for the Bodywork section.
