Folding top compartment lid for BMW 4 Series G23 Convertible LCI 430i (2025)

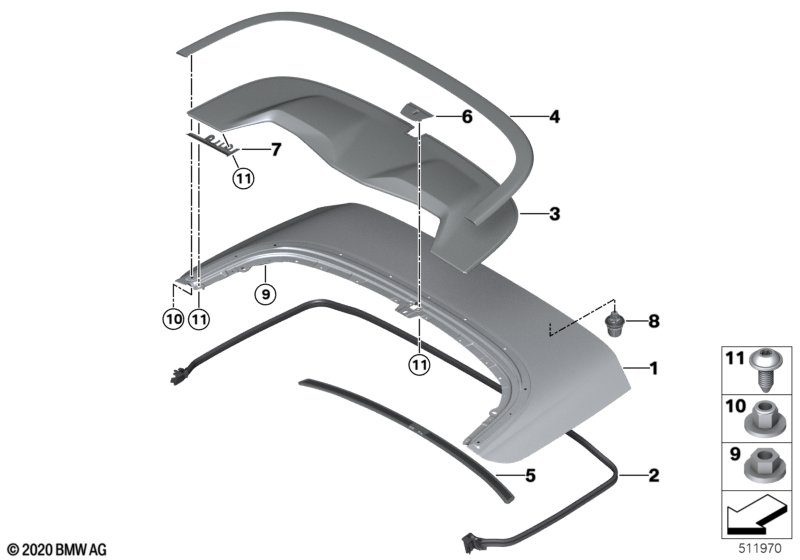

This Folding top compartment lid technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding top compartment lid,prime-coated | 1 | 41009881889 | Shop at ECS Tuning | ||||||
| 02 | Seal for convertible top compartment lid | 1 | 51177490633 | Shop at ECS Tuning | ||||||
| 03 | Cover, folding top compartment lid | 1 | 51177490631 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 04 | Molding, folding top lid | ALU SATINIERT | 1 | 51177490636 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=No |
|||||||||
| 04 | Molding, folding top lid | SHADOWLINE | 1 | 51177490635 | Shop at ECS Tuning | |||||
| 05 | Retainer buffer convertible top | 1 | 51179883711 | Shop at ECS Tuning | ||||||
| 06 | Centering convert.top comp.lid trim panl | 1 | 54345A05E36 | Shop at ECS Tuning | ||||||
| 07 | Cover, folding top flap, left | 1 | 51177490639 | Shop at ECS Tuning | ||||||
| 07 | Cover, folding top flap, right | 1 | 51177490640 | Shop at ECS Tuning | ||||||
| 08 | Bump stop, trunk lid | 2 | 07148811830 | Shop at ECS Tuning | ||||||
| 09 | Hex nut with plate | M8 | 6 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5 | 11 | 07129904997 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw with collar | 18 | 07147187828 | $0.38 | Shop at ECS Tuning | |||||
