Wheelhouse/engine support for BMW MINI Cabrio F67 JCW (2025)

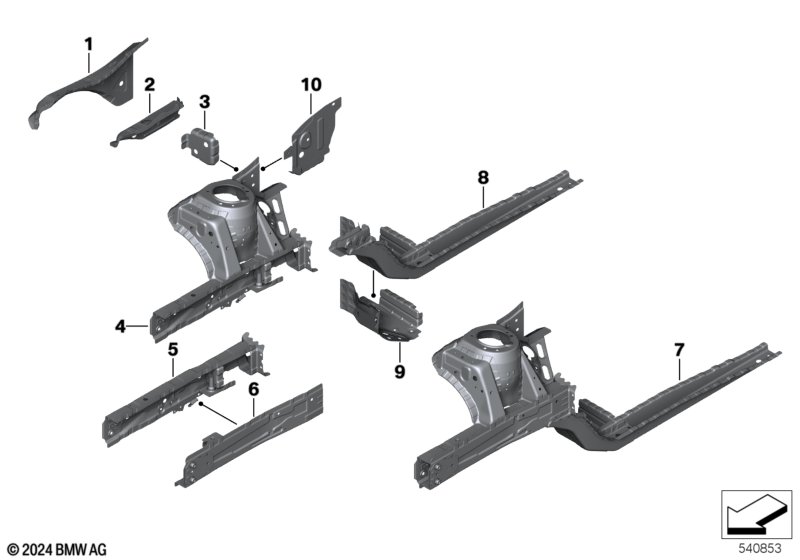

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting strut,whl house, exterior lft | 1 | 41007387003 | Shop at ECS Tuning | ||||||
| 01 | Supporting strut,whl house,exterior rght | 1 | 41007387004 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house, interior lft | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 04 | Spring strut assembly, front left | 1 | 41007386983 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N2 | 8 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Bodywork adhesive K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Blind rivet N7 | 150 ST. | 20 | 83192240352 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Moulded part f wheel housing supp.,front | 1 | 41007292801 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house, exterior lft | 1 | 41007387003 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house, interior lft | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| -- | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 04 | Spring strut assembly, front right | 1 | 41007428086 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N2 | 8 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Bodywork adhesive K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Blind rivet N7 | 150 ST. | 20 | 83192240352 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Moulded part f wheel housing supp.,front | 1 | 41007292801 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house,exterior rght | 1 | 41007387004 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| -- | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 04 | Shock tower, front right, with VIN | 1 | 41002406078 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N2 | 8 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Bodywork adhesive K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Blind rivet N7 | 150 ST. | 20 | 83192240352 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Moulded part f wheel housing supp.,front | 1 | 41007292801 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house,exterior rght | 1 | 41007387004 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| -- | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| 05 | Exterior left engine support | 1 | 41007386987 | Shop at ECS Tuning | ||||||
| 05 | Exterior right engine support | 1 | 41007386988 | Shop at ECS Tuning | ||||||
| 06 | Left interior engine support | 1 | 41007426415 | Shop at ECS Tuning | ||||||
| 06 | Right interior engine support | 1 | 41007426416 | Shop at ECS Tuning | ||||||
| 07 | Wheelhousing, front right | 1 | 41007424498 | Shop at ECS Tuning | ||||||
| 07 | Front left wheelhouse | 1 | 41007426413 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 07 | Wheel well, front right, with VIN | 1 | 41002406082 | Shop at ECS Tuning | ||||||
| 08 | Rear left engine support | 1 | 41007386991 | Shop at ECS Tuning | ||||||
| 08 | Rear right engine support | 1 | 41007386992 | Shop at ECS Tuning | ||||||
| 09 | Connection pcs, wheel house/entrance,lft | 1 | 41007360135 | Shop at ECS Tuning | ||||||
| 09 | Connection pcs,wheel house/entrance,rght | 1 | 41007360136 | Shop at ECS Tuning | ||||||
| 10 | Left interior column A | 1 | 41007387015 | Shop at ECS Tuning | ||||||
| 10 | Right interior column A | 1 | 41007387016 | Shop at ECS Tuning | ||||||
