Front side panel for BMW MINI Cabrio F67 JCW (2025)

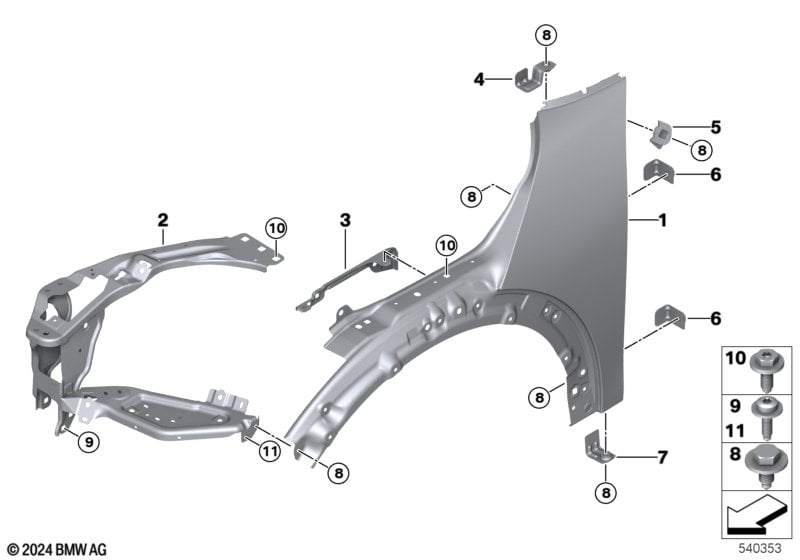

This Front side panel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, front left | 1 | 41359629187 | Shop at ECS Tuning | ||||||
| 01 | Side panel right front | 1 | 41359629188 | Shop at ECS Tuning | ||||||
| 02 | Mount for headlight, left | 1 | 51645A2F5B3 | Shop at ECS Tuning | ||||||
| 02 | Mount for headlight, right | 1 | 51645A2F5B4 | Shop at ECS Tuning | ||||||
| 03 | Bracket, deformation element, front left | 1 | 41007374527 | Shop at ECS Tuning | ||||||
| 03 | Bracket, deformation element, fr. right | 1 | 41007374528 | Shop at ECS Tuning | ||||||
| 04 | Bracket, side panel, top left | 1 | 41007389471 | Shop at ECS Tuning | ||||||
| 04 | Bracket, side panel, top right | 1 | 41007389472 | Shop at ECS Tuning | ||||||
| 05 | Bracket, side panel column A left | 1 | 41007389467 | Shop at ECS Tuning | ||||||
| 05 | Bracket, side panel, column A right | 1 | 41007389468 | Shop at ECS Tuning | ||||||
| 06 | Bracket, side panel, center | 2 | 41007389466 | Shop at ECS Tuning | ||||||
| 07 | Bracket, side panel, bottom | 1 | 41007389489 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X12 | 10 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Countersunk screw | M6X20-PCU2-10.9 | 6 | 07119908698 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X22 | 3 | 07147152728 | $0.75 | Shop at ECS Tuning | ||||
| 11 | Screw | M6X20 | 2 | 07119908722 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Front side panel?
- This technical diagram illustrates the Front side panel within the Bodywork group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Side panel, front left (Part #41359629187).
- Which models use the hardware listed in this Front side panel?
- The hardware and components featured in the Front side panel are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Side panel, front left (41359629187) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front side panel assembly?
- Each item in the Front side panel corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Side panel, front left by locating its position on the schematic, which then links to the official BMW part number 41359629187 for the Bodywork section.
