Side frame section, center for BMW 5 Series G61 Touring 540dX (2025)

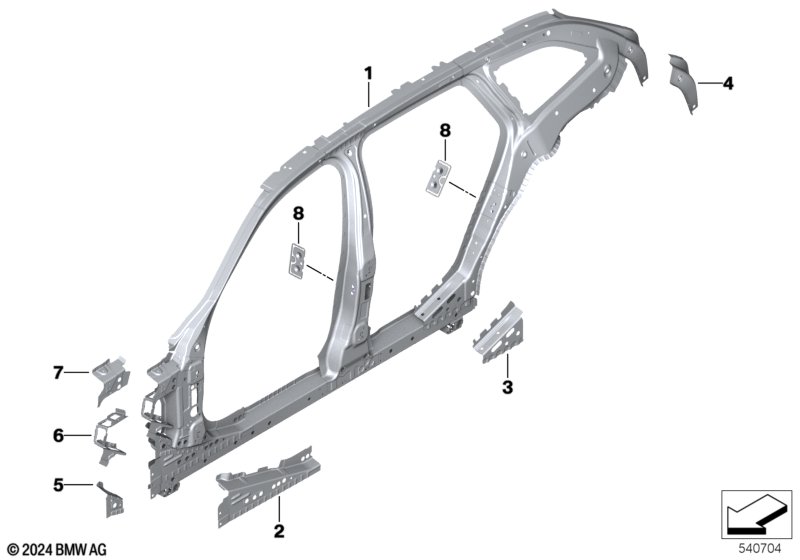

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame center left | 1 | 41219627229 | NoS | Shop at ECS Tuning | |||||
| 01 | Side frame center right | 1 | 41219627230 | NoS | Shop at ECS Tuning | |||||
| 02 | Support, carrier support, left | 1 | 41219635495 | NoS | Shop at ECS Tuning | |||||
| 02 | Support, carrier support, right | 1 | 41219635496 | NoS | Shop at ECS Tuning | |||||
| 03 | Reinforcement door sill left | 1 | 41219635509 | NoS | Shop at ECS Tuning | |||||
| 03 | Reinforcement door sill right | 1 | 41219635510 | NoS | Shop at ECS Tuning | |||||
| 04 | Support for D-pillar, left | 1 | 41219635513 | NoS | Shop at ECS Tuning | |||||
| 04 | Support for D-pillar, right | 1 | 41219635514 | NoS | Shop at ECS Tuning | |||||
| 05 | Crash reinforcement left | 1 | 41219635507 | NoS | Shop at ECS Tuning | |||||
| 05 | Crash reinforcement right | 1 | 41219635508 | NoS | Shop at ECS Tuning | |||||
| 06 | Bulkhead plate, A-pillar left | 1 | 41219635497 | NoS | Shop at ECS Tuning | |||||
| 06 | Bulkhead plate, A-pillar right | 1 | 41219635498 | NoS | Shop at ECS Tuning | |||||
| 07 | Extension, wheel housing strut left | 1 | 41219635493 | NoS | Shop at ECS Tuning | |||||
| 07 | Extension, wheel housing strut right | 1 | 41219635494 | NoS | Shop at ECS Tuning | |||||
| 08 | Threaded plate, striker | 2 | 41009852058 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
