Rear door - hinge/door brake for BMW 5 Series G61 Touring 530e (2025)

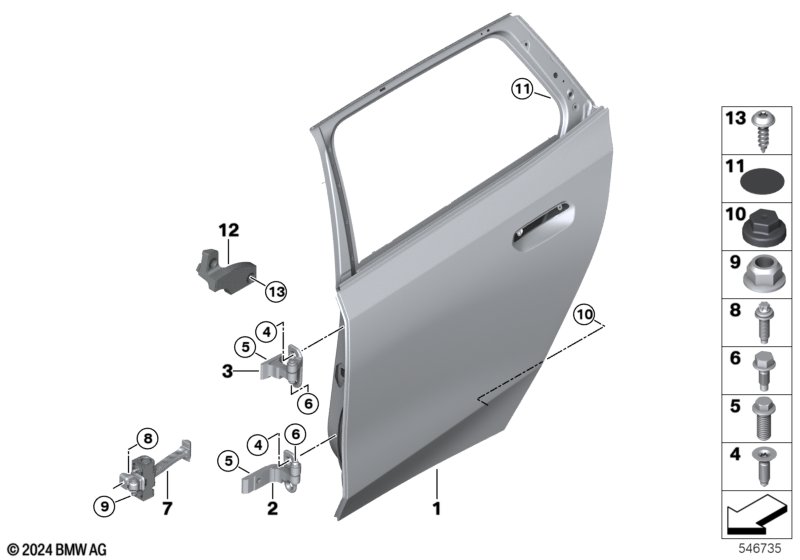

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door, aluminum, rear left | 1 | 41525A32EB3 | Shop at ECS Tuning | ||||||
| 01 | Door, aluminum, rear right | 1 | 41525A32EB4 | Shop at ECS Tuning | ||||||
| 02 | Door hinge, bottom left | 1 | 41527420097 | Shop at ECS Tuning | ||||||
| 02 | Door hinge, bottom right | 1 | 41527420098 | Shop at ECS Tuning | ||||||
| 03 | Door hinge, top left | 1 | 41517420093 | Shop at ECS Tuning | ||||||
| 03 | Door hinge, top right | 1 | 41517420094 | Shop at ECS Tuning | ||||||
| 04 | Torx-countersunk head screw | ISA M8X29.5 | 8 | 07147261771 | Shop at ECS Tuning | |||||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 06 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | Shop at ECS Tuning | |||||
| 07 | Door brake rear | 2 | 51225A09812 | Shop at ECS Tuning | ||||||
| 08 | KOMBI external Torx socket | 2 | 07148846530 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 10 | Protection cap | 4 | 07147211572 | Shop at ECS Tuning | ||||||
| 11 | Seal and insulation mat | D=39,5 /SCHWARZ | 4 | 07147392446 | Shop at ECS Tuning |
