Side frame section, inner for BMW 5 Series G61 Touring 520d (2025)

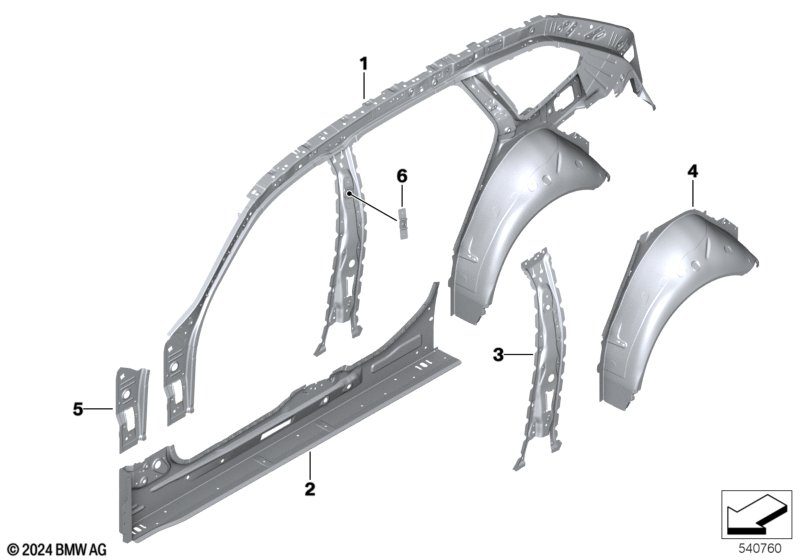

This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame inner left | 1 | 41209627231 | NoS | Shop at ECS Tuning | |||||
| 01 | Side frame inner right | 1 | 41209627232 | NoS | Shop at ECS Tuning | |||||
| 02 | Side member inner left | ICE | 1 | 41118852445 | NoS | Shop at ECS Tuning | ||||
| 02 | Side member inner right | ICE | 1 | 41118852446 | NoS | Shop at ECS Tuning | ||||
| 03 | Interior left column B | 1 | 41209635487 | NoS | Shop at ECS Tuning | |||||
| 03 | Column B inside right | 1 | 41209635488 | NoS | Shop at ECS Tuning | |||||
| 04 | Wheel-house inner panel, rear left | 1 | 41209635483 | NoS | Shop at ECS Tuning | |||||
| 04 | Wheel-house inner panel, rear right | 1 | 41209635484 | NoS | Shop at ECS Tuning | |||||
| 05 | A-pillar inner, rear left | 1 | 41209635485 | NoS | Shop at ECS Tuning | |||||
| 05 | A-pillar inner, rear right | 1 | 41209635486 | NoS | Shop at ECS Tuning | |||||
| 06 | Holder B-pillar | 1 | 41209635491 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520d Side frame section, inner?
- This technical diagram illustrates the Side frame section, inner within the Bodywork group for the 5 Series G61 Touring 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Side frame inner left (Part #41209627231).
- Which models use the hardware listed in this Side frame section, inner?
- The hardware and components featured in the Side frame section, inner are specific to the 5 Series G61 Touring 520d produced during 2025. These technical specifications ensure that parts like the Side frame inner left (41209627231) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side frame section, inner assembly?
- Each item in the Side frame section, inner corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520d, you can identify the Side frame inner left by locating its position on the schematic, which then links to the official BMW part number 41209627231 for the Bodywork section.
