Roof for BMW 5 Series G61 Touring 530e (2025)

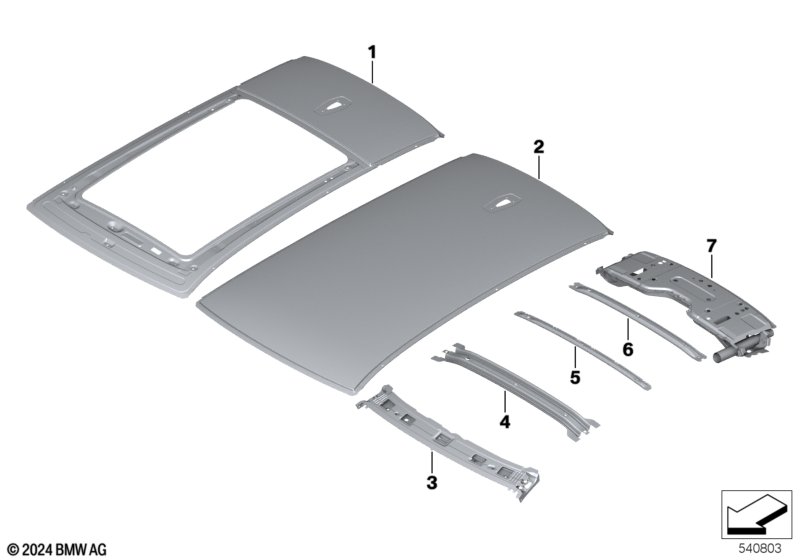

This Roof technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Frame Sky Lounge panoramic glass sunroof | PANORAM.SUNROOF | 1 | 41315A6AB46 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 02 | Roof outer skin | 1 | 41315A6AB43 | NoS | Shop at ECS Tuning | |||||
| 03 | Upper apron | 1 | 41315A6AB10 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 04 | Roof bow | 1 | 41315A6AB38 | NoS | Shop at ECS Tuning | |||||
| 05 | Convertible roof brace center | 1 | 41325A6AB39 | NoS | Shop at ECS Tuning | |||||
| 06 | Convertible roof brace rear | 1 | 41315A6AB40 | NoS | Shop at ECS Tuning | |||||
| 07 | Rear window frame upper part | 1 | 41315A6AB32 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 530e Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 5 Series G61 Touring 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Frame Sky Lounge panoramic glass sunroof (Part #41315A6AB46).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 5 Series G61 Touring 530e produced during 2025. These technical specifications ensure that parts like the Frame Sky Lounge panoramic glass sunroof (41315A6AB46) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 530e, you can identify the Frame Sky Lounge panoramic glass sunroof by locating its position on the schematic, which then links to the official BMW part number 41315A6AB46 for the Bodywork section.
