Side panel/tail trim for BMW 5 Series G61 Touring 550eX (2025)

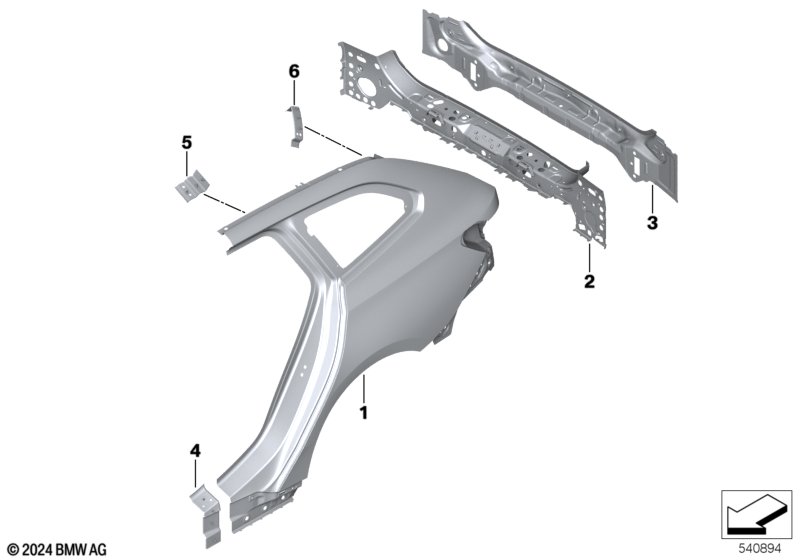

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel rear left | 1 | 41219635521 | Shop at ECS Tuning | ||||||
| 01 | Side panel right rear | 1 | 41219635522 | Shop at ECS Tuning | ||||||
| 02 | Complete tail trim | 1 | 41349635251 | Shop at ECS Tuning | ||||||
| 03 | Rear trim panel outer skin | 1 | 41349635252 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, door sill left | 1 | 41215A5C877 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement plate, door sill right | 1 | 41215A5C878 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement plate, C-pillar left | 1 | 41219635527 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement plate, C-pillar right | 1 | 41219635528 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement plate, D-pillar left | 1 | 41219635529 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement plate, D-pillar right | 1 | 41219635530 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
