Body skeleton for BMW MINI Cabrio F67 JCW (2025)

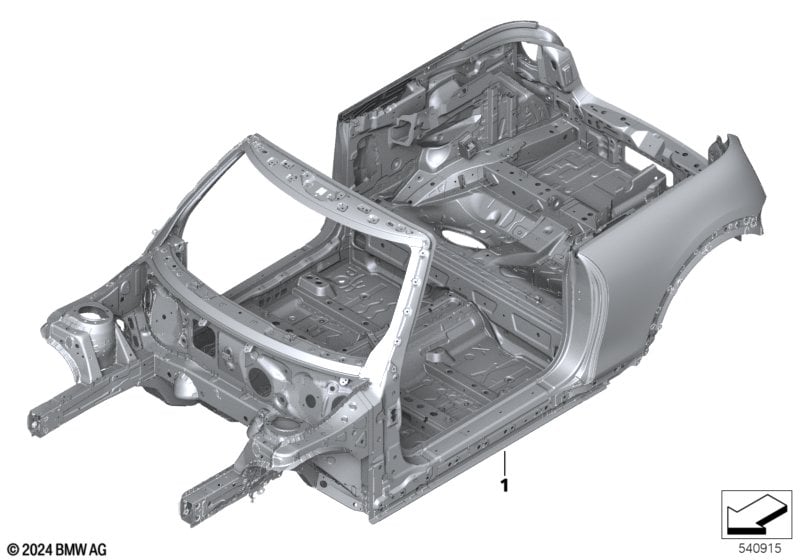

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body frame without VIN | 1 | 41009641982 | NoS | Shop at ECS Tuning | |||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body frame with VIN | 1 | 41009647743 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Body frame without VIN (Part #41009641982).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Body frame without VIN (41009641982) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Body frame without VIN by locating its position on the schematic, which then links to the official BMW part number 41009641982 for the Bodywork section.
