Mounting parts for trunk floor panel for BMW 5 Series G61 Touring 520dX (2025)

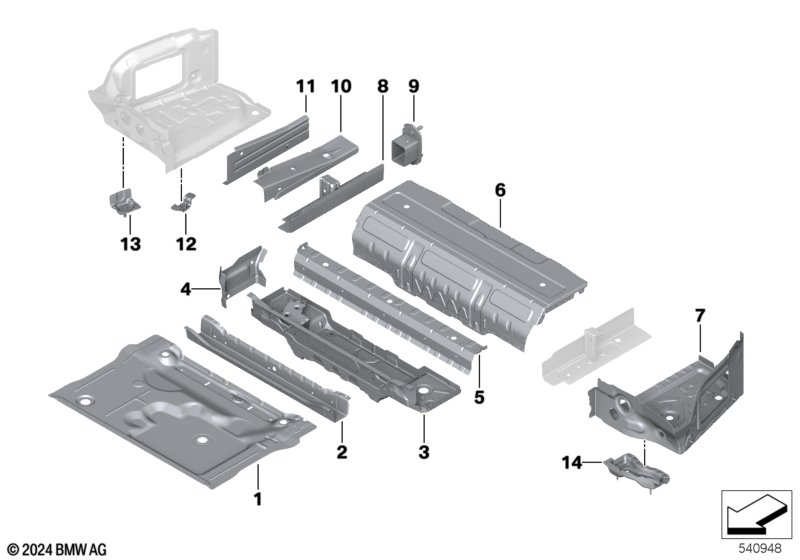

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cargo area floor front | 1 | 41129635222 | Shop at ECS Tuning | ||||||
| 02 | Cross member trunk floor, front | 1 | 41007431427 | NoS | Shop at ECS Tuning | |||||
| 03 | Luggage compartment pan | ICE/PHEV | 1 | 41119635212 | NoS | Shop at ECS Tuning | ||||
| 04 | Trunk tub left | 1 | 41125A379A3 | NoS | Shop at ECS Tuning | |||||
| 04 | luggage compartment liner right | 1 | 41125A379A4 | NoS | Shop at ECS Tuning | |||||
| 05 | Cross member, trunk floor rear | 1 | 41007413081 | Shop at ECS Tuning | ||||||
| 06 | Luggage compartment floor, rear | 1 | 41007431642 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 8 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N2 | 2 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 10 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 4 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 07 | Cargo area floor left | 1 | 41149635241 | Shop at ECS Tuning | ||||||
| 07 | Cargo area floor right | 1 | 41149635242 | Shop at ECS Tuning | ||||||
| 08 | Extension, side member, side, left | 1 | 41119635231 | Shop at ECS Tuning | ||||||
| 08 | Extension, side member, side, right | 1 | 41119635232 | Shop at ECS Tuning | ||||||
| 09 | Mount, bumper left | 1 | 41009631871 | Shop at ECS Tuning | ||||||
| 09 | Mount, bumper right | 1 | 41009631872 | Shop at ECS Tuning | ||||||
| 10 | Extension, side member, upper left | 1 | 41007431633 | Shop at ECS Tuning | ||||||
| 10 | Extension, side member, upper right | 1 | 41007431634 | Shop at ECS Tuning | ||||||
| 11 | Extension, side member, side, left | 1 | 41119635231 | NoS | Shop at ECS Tuning | |||||
| 11 | Extension, side member, side, right | 1 | 41119635232 | NoS | Shop at ECS Tuning | |||||
| 12 | Bracket activated Carbon container | M6 | 2 | 41007431655 | Shop at ECS Tuning | |||||
| 13 | Mount for SCR container | 2 | 41007436957 | Shop at ECS Tuning | ||||||
| 14 | Mount for air-supply system | 1 | 41145A37A94 | Shop at ECS Tuning | ||||||
