Trunk lid, mounting parts for BMW 5 Series G61 Touring 550eX (2025)

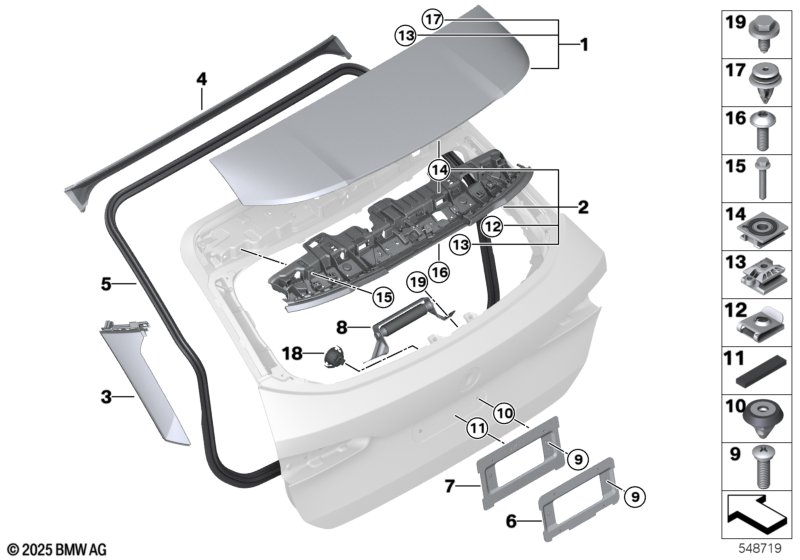

This Trunk lid, mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear spoiler | 1 | 51625A1CEE0 | Shop at ECS Tuning | ||||||
| 02 | Trim, rear spoiler | 1 | 51625A1CEE3 | Shop at ECS Tuning | ||||||
| 03 | Trim, rear spoiler, left | 1 | 51625A1CEF1 | Shop at ECS Tuning | ||||||
| 03 | Trim, rear spoiler, right | 1 | 51625A1CEF2 | Shop at ECS Tuning | ||||||
| 04 | Seal, roof | 1 | 51765A1CEE6 | Shop at ECS Tuning | ||||||
| 05 | Trunk lid gasket | 1 | 51765A1CEE5 | Shop at ECS Tuning | ||||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 06 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 09 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
| 11 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,8-9-ZNS3 | 3 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Sliding nut | 50X12-Z | 6 | 51627946739 | Shop at ECS Tuning | |||||
| 14 | Adjustment element | 25 | 6 | 51628496367 | Shop at ECS Tuning | |||||
| 15 | Screw | M6X30 | 6 | 07149909495 | Shop at ECS Tuning | |||||
| 16 | Screw | VS-DTS5X16-F-ZN | 6 | 07129909959 | Shop at ECS Tuning | |||||
| 17 | Clip green | 2 | 07147129310 | $1.11 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 18 | Warning signal unit | 1 | 51627482572 | Shop at ECS Tuning | ||||||
