Rear wheelhouse/floor parts for BMW 5 Series G61 Touring 530e (2025)

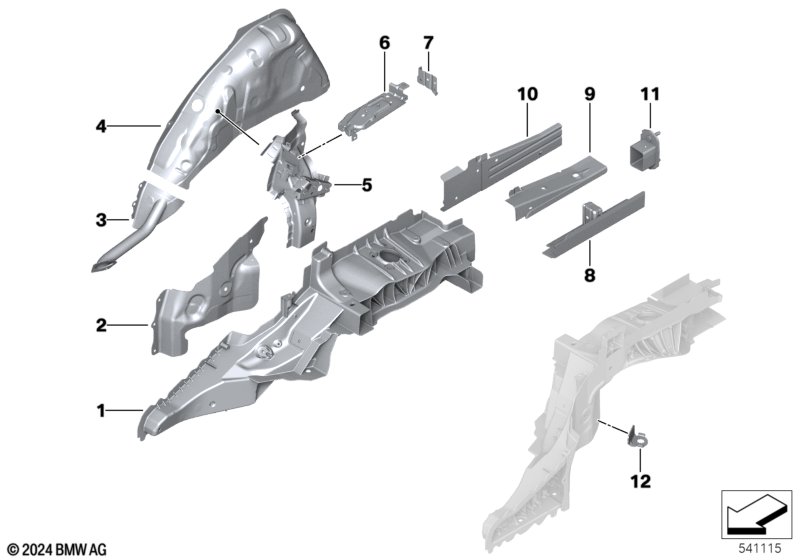

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right rear side member | 1 | 41118872742 | NoS | Shop at ECS Tuning | |||||
| 01 | Rear left side member | 1 | 41118872743 | NoS | Shop at ECS Tuning | |||||
| 02 | End plate side member, left | 1 | 41119635233 | NoS | Shop at ECS Tuning | |||||
| 02 | End plate side member, right | 1 | 41119635234 | NoS | Shop at ECS Tuning | |||||
| 03 | Pipe, fuel ventilation | 1 | 41007431657 | Shop at ECS Tuning | ||||||
| 04 | Wheel well rear inner left | 1 | 41149635245 | NoS | Shop at ECS Tuning | |||||
| 04 | Wheel well rear inner right | 1 | 41149635246 | NoS | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse left | 1 | 41149635253 | Shop at ECS Tuning | ||||||
| 05 | Support, wheelhouse right | 1 | 41149635254 | Shop at ECS Tuning | ||||||
| 06 | Support belt reel, left | 1 | 41149635255 | NoS | Shop at ECS Tuning | |||||
| 06 | Support belt reel, right | 1 | 41149635256 | NoS | Shop at ECS Tuning | |||||
| 07 | Support belt reel, left | 1 | 41149635257 | NoS | Shop at ECS Tuning | |||||
| 07 | Support belt reel, right | 1 | 41149635258 | NoS | Shop at ECS Tuning | |||||
| 08 | Extension, side member, lower left | ICE/PHEV | 1 | 41119635159 | NoS | Shop at ECS Tuning | ||||
| 08 | Extension side member lower right | ICE/PHEV | 1 | 41119635160 | NoS | Shop at ECS Tuning | ||||
| 09 | Extension, side member, upper left | 1 | 41007431633 | Shop at ECS Tuning | ||||||
| 09 | Extension, side member, upper right | 1 | 41007431634 | Shop at ECS Tuning | ||||||
| 10 | Extension, side member, side, left | 1 | 41119635231 | NoS | Shop at ECS Tuning | |||||
| 10 | Extension, side member, side, right | 1 | 41119635232 | NoS | Shop at ECS Tuning | |||||
| 11 | Mount, bumper left | 1 | 41009631871 | Shop at ECS Tuning | ||||||
| 11 | Mount, bumper right | 1 | 41009631872 | Shop at ECS Tuning | ||||||
| 12 | Holder, brake hose, left | 1 | 41007413083 | Shop at ECS Tuning | ||||||
| 12 | Holder, brake hose, right | 1 | 41007413084 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
