Front body bracket for BMW 2 Series F74 Gran Coupé 218 (2025)

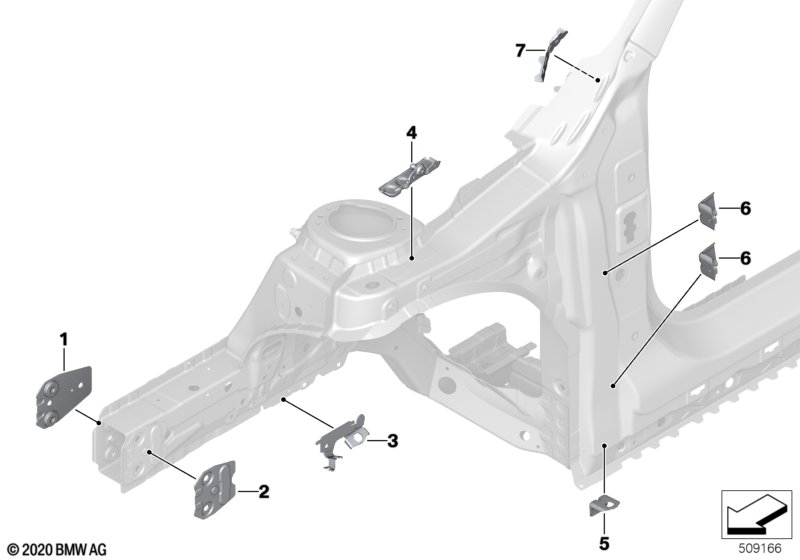

This Front body bracket technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw plate with Y-screw connection | 1 | 41007286507 | Shop at ECS Tuning | ||||||
| 02 | Nut plate with Y-screw connection | 1 | 41007421336 | Shop at ECS Tuning | ||||||
| 03 | Holder, brake hose, left | 1 | 41007386989 | Shop at ECS Tuning | ||||||
| 03 | Holder, brake hose, right | 1 | 41007386990 | Shop at ECS Tuning | ||||||
| 04 | Bracket for gas spring, left | 1 | 51238497233 | NoS | Shop at ECS Tuning | |||||
| 04 | Bracket for gas spring, right | 1 | 51238497234 | NoS | Shop at ECS Tuning | |||||
| 05 | Bracket, side panel column A | 2 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 06 | Bracket, side panel, bottom | 4 | 41217284401 | Shop at ECS Tuning | ||||||
| 07 | Side panel bracket, front left 3 | 1 | 41008497231 | Shop at ECS Tuning | ||||||
| 07 | Side panel bracket, front right 3 | 1 | 41008497232 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
