Body-side frame for BMW 1 Series F70 116 (2025)

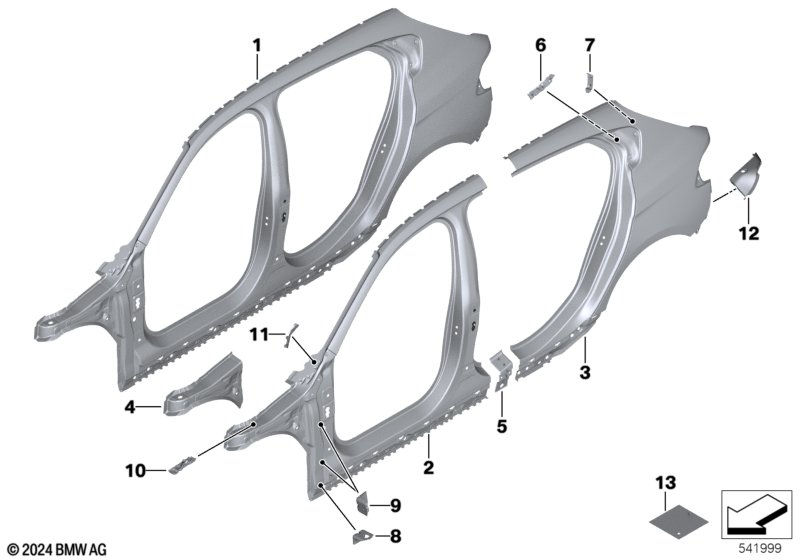

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 116. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41305A64AD1 | NoS | Shop at ECS Tuning | |||||
| 01 | Side frame, exterior, right | 1 | 41305A64AD2 | NoS | Shop at ECS Tuning | |||||
| 02 | Left exterior column A | 1 | 41305A64AE1 | Shop at ECS Tuning | ||||||
| 02 | Column A exterior right | 1 | 41305A64AE2 | Shop at ECS Tuning | ||||||
| 03 | Left rear side panel | 1 | 41305A64AD5 | Shop at ECS Tuning | ||||||
| 03 | Right rear side panel | 1 | 41305A64AD6 | Shop at ECS Tuning | ||||||
| 04 | Extension, wheel housing strut left | 1 | 41219498395 | NoS | Shop at ECS Tuning | |||||
| 04 | Extension, wheel housing strut right | 1 | 41219498396 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement plate, rocker panel, left | 1 | 41009466209 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, rocker panel, right | 1 | 41009466210 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, left | 1 | 41309635193 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, right | 1 | 41309635194 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, D-pillar, left | 1 | 41309635195 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, D-pillar, right | 1 | 41309635196 | Shop at ECS Tuning | ||||||
| 08 | Bracket, side panel column A | 2 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, bottom | 4 | 41217284401 | Shop at ECS Tuning | ||||||
| 10 | Bracket for gas spring, left | 1 | 51238497233 | NoS | Shop at ECS Tuning | |||||
| 10 | Bracket for gas spring, right | 1 | 51238497234 | NoS | Shop at ECS Tuning | |||||
| 11 | Side panel bracket, front left 3 | 1 | 41008497231 | Shop at ECS Tuning | ||||||
| 11 | Side panel bracket, front right 3 | 1 | 41008497232 | Shop at ECS Tuning | ||||||
| 12 | Extension piece, side frame, rear left | 1 | 41215A65731 | NoS | Shop at ECS Tuning | |||||
| 12 | Extension piece, side frame, rear right | 1 | 41215A65732 | NoS | Shop at ECS Tuning | |||||
| 13 | Reinforcement plate, universal | X | 41217275563 | Shop at ECS Tuning | ||||||
